Discover the 4 Key Advantages of Winsun's Mini Rail Solar Mounting System

Discover the 4 Key Advantages of Winsun's Mini Rail Solar Mounting System
Jan 20, 2023

In the realm of solar panel installation, Winsun's Mini Rail system has garnered acclaim for its unique design and exceptional performance. Here are the four primary advantages of this system:



1. Short Rail Installation for Cost Savings:

Winsun's Mini Rail adopts a short rail design, not only reducing material costs but also providing a more economical choice for solar panel installation.



2. Simple Structure, Easy and Fast Installation:

The Mini Rail system features a simple yet efficient structural design, making the installation process convenient and swift. This not only reduces construction time but also enhances overall installation efficiency, ensuring projects can be operational sooner.



3. Pre-installed EPDM Rubber Pads for Enhanced Waterproof Performance:

To ensure waterproof performance, all Winsun Mini Rails come pre-installed with high-quality EPDM rubber pads before leaving the factory. This pre-installation measure effectively prevents potential leakage issues, providing assurance for the system's reliability.



4. Customizable Rail Lengths for Flexible Adaptation to Various Metal Roofs:

Winsun's Mini Rail system offers customizable rail lengths, enhancing flexibility to adapt to various types of metal roofs. This personalized design ensures the system seamlessly matches project requirements.

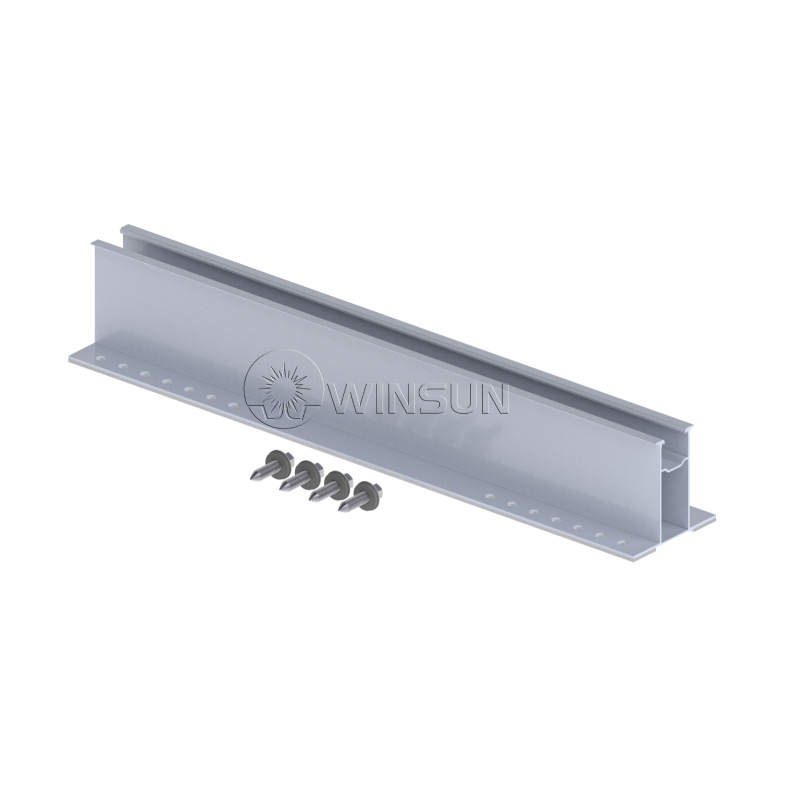

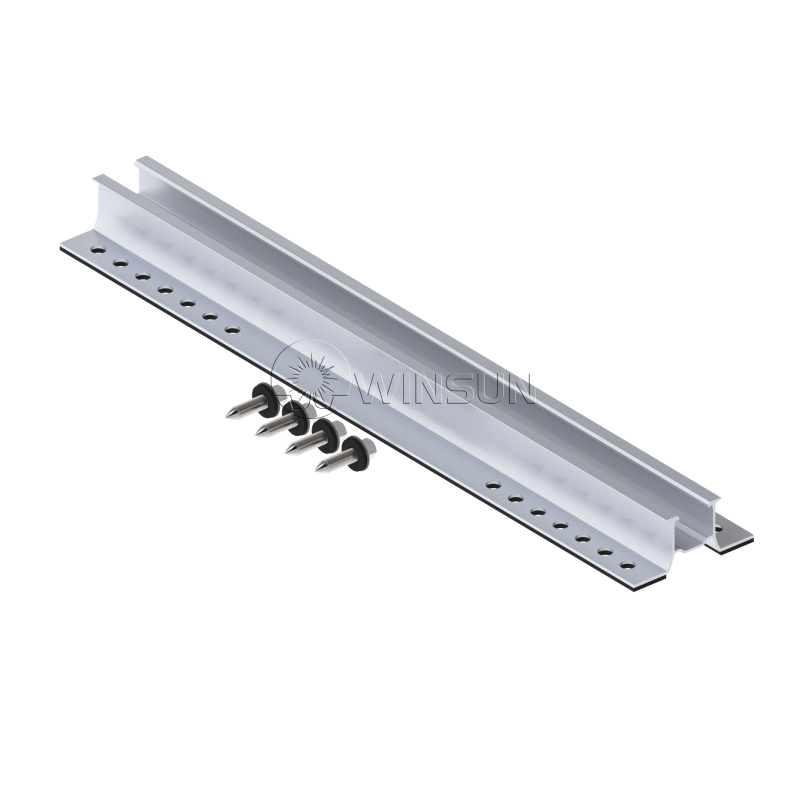

27mm Height Mini Rail Kit

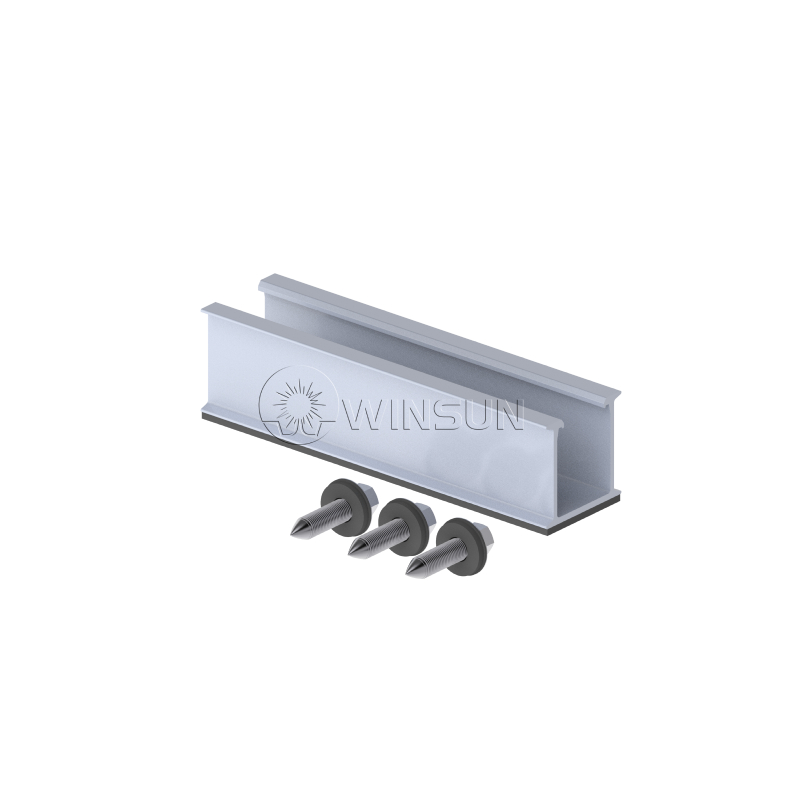

30mm Height Mini Rail Kit

40mm Height Mini Rail Kit

60mm Height Mini Rail Kit

  27mm height mini rail for metal roof solar mounting 30mm height mini rail for metal roof solar mounting 40mm height mini rail for metal roof solar mounting 60mm height mini rail for metal roof solar mounting
Item NO. WS-R27-MINI WS-R30-MINI WS-R40-MINI WS-R60-MINI
Material

Aluminum 6005-T5,SUS 304 & EPDM

Aluminum 6005-T5,SUS 304 & EPDM

Aluminum 6005-T5,SUS 304 & EPDM

Aluminum 6005-T5,SUS 304 & EPDM

Length 385mm 120mm 120mm 385mm
BOM 385mm R27 mini rail*1,tapping screw*4,EPDM rubber pad*2 120mm R30 mini rail*1,tapping screw*3,EPDM rubber pad*1 120mm R40 mini rail*1,tapping screw*3,EPDM rubber pad*1 385mm R60 mini rail*1, tapping screw*4,EPDM rubber pad*2
Application

Trapezoidal sheet metal roof

Corrugated sheet metal roof

Sandwich panel roof

Trapezoidal sheet metal roof

Sandwich panel roof

Trapezoidal sheet metal roof

Sandwich panel roof

Trapezoidal sheet metal roof

Corrugated sheet metal roof

Sandwich panel roof



In summary, Winsun's Mini Rail solar installation system stands out in the industry for its innovation, cost-effectiveness, and flexibility. Whether in cost savings or installation efficiency, this system demonstrates outstanding performance, offering reliable support for the successful implementation of solar projects.



For more information about Winsun's Mini Rail system, feel free to visit our official website or contact our professional team.
