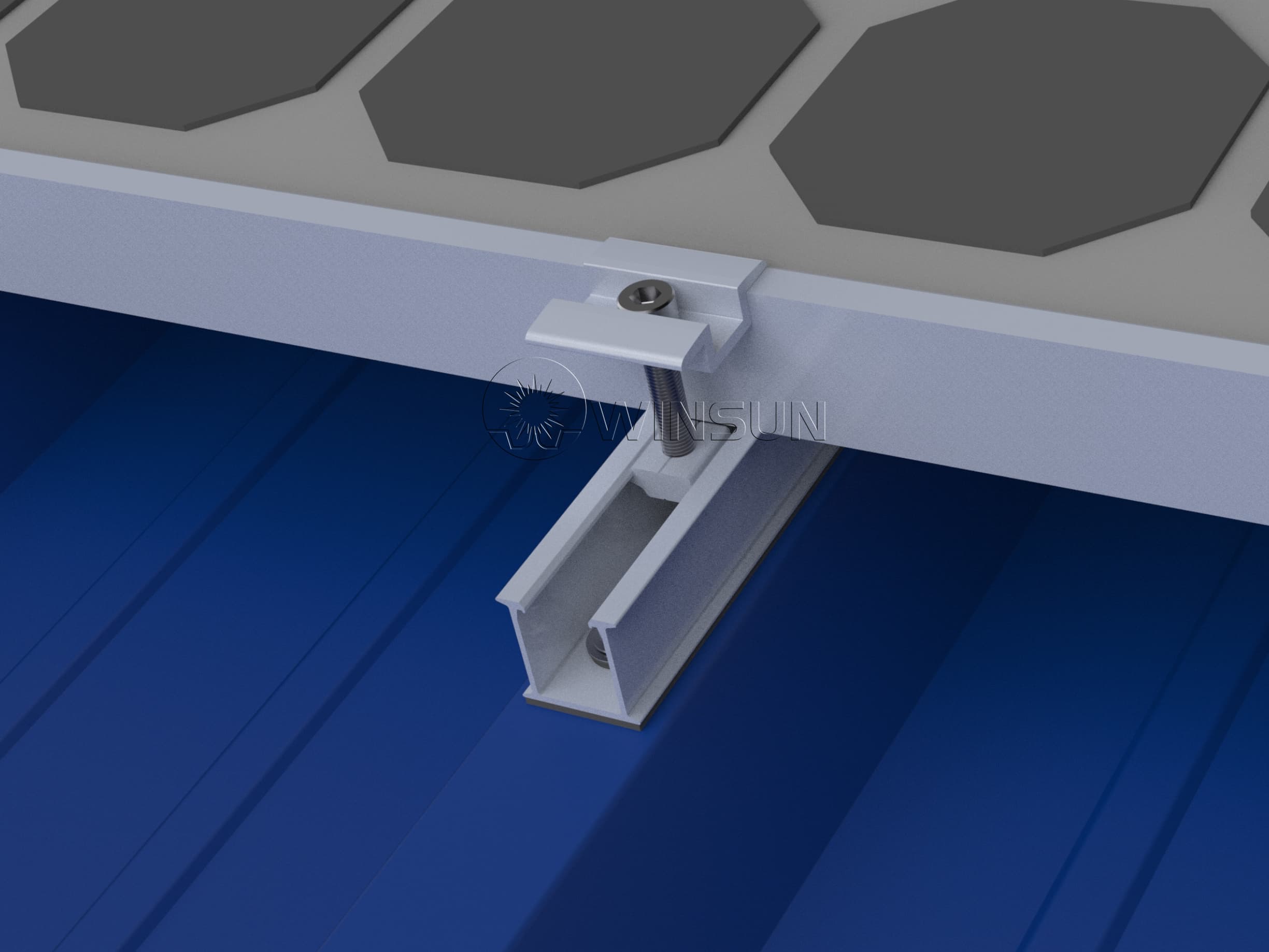

U-shaped Mini Rail Solar Mounting Bracket For Trapezoidal Metal Roof

U-shaped Mini Rail Solar Mounting Bracket For Trapezoidal Metal Roof

1.Suitable for trapezoidal sheet metal roof, sandwich panel roof, etc.

2.Available in two heights, 30mm and 40mm.

3.Rail segments are supplied with EPDM sealing tape covered bottom side.



  • Item No :

    WS-R30-MINI
  • Material :

    AL6005-T5,SUS 304&EPDM
  • Color :

    Silver or Black
  • Warranty :

    15 Years
  • Shipping Port :

    Xiamen Port,China
Product Instruction

WS-R30-MINI is used for metal roof solar mounting.Micro-rail makes the quicker installation and more cost saving.It provides a cost-effective solar panel mounting solution for metal roof.
The default length of WS-R30-MINI is 120mm, but you can also customize the length according to the actual needs.
The whole set of mini rail includes self-tapping screws and rubber pad. However, you can also buy the mini rail alone without accessories.
Click to see more information about 40mm height U-shaped mini rails.



Item NO. WS-R30-MINI
Material Aluminum 6005-T5,SUS 304 & EPDM
Surface Anodized
Color Silver or Black
Length 120mm or Customized
BOM 120mm R30 rail*1,Self-tapping screw*3,Rubber pad*1
Warranty 15 Years



mini rail solar mounting bracket
