Pitched Roof Solar Mounting System For Tile Roof Solar Panel Mounting
1.Aluminum solar mounting rail,stainless steel tile roof hook.Premium material,long service life.
2.Multiple types of hooks are available for selection.
3.Simple structure,fast installation.
Installation Site :
Tile RoofWind Load :
60m/sSnow Load :
2KN/m2Material :
AL6005-T5 & SUS304Warranty :
15 YearsShipping Port :
Xiamen Port,ChinaSystem Instruction

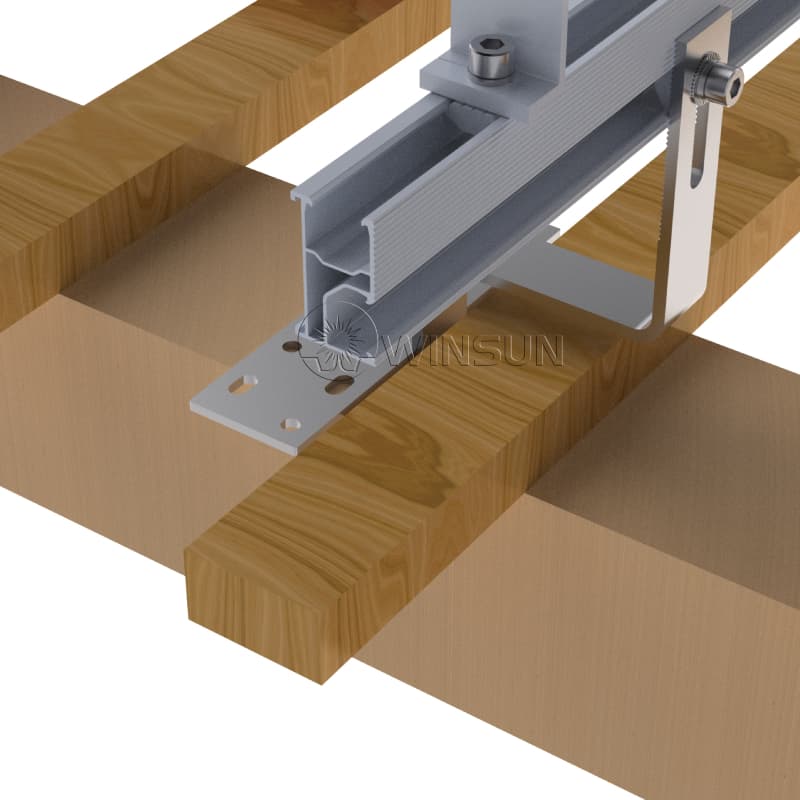

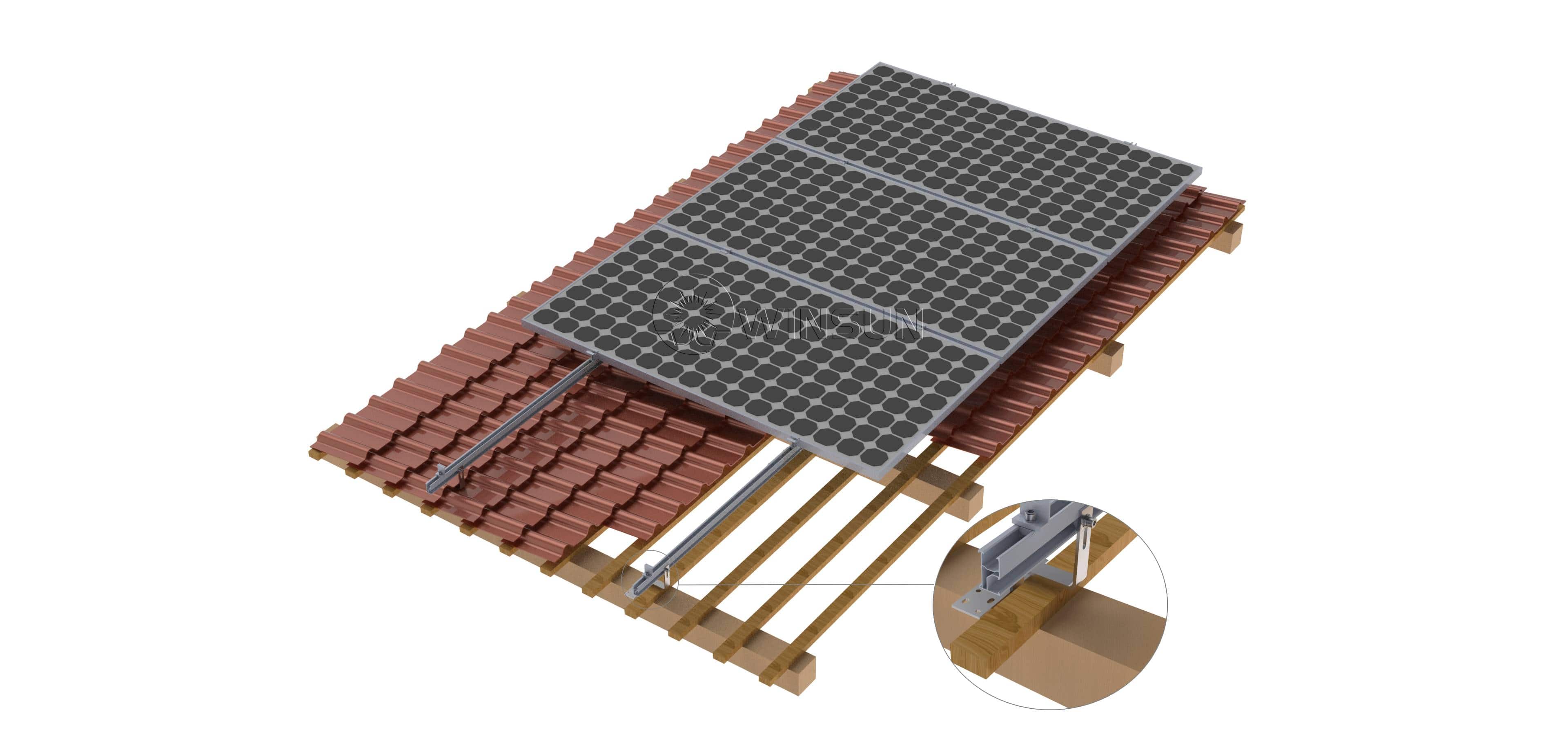

Winsun tile roof mounting system adopts stainless steel tile roof hooks and aluminum solar mounting profile, which makes the structure more stable and has good corrosion resistance.And we have various different types of tile roof hooks to choose from, which is suitable for a variety of tile roofs ( such as pan tile,plain tile,slate tile,flat roof tile,spanish tile,etc.). In addition, besides the existing hooks, we also support hook customization.
Technical Parameter
| Installation Site | Tile Roof |
| Material | Aluminum 6005-T5 & SUS304 Stainless Steel |
| Wind Load | 60m/s |
| Snow Load | 2KN/m2 |
| Tilt Angle | 0°~60°(the same angle as roof) |
| PV Modules | Framed or Frameless |
| Design Standard | AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015 |
| Certificate | CE |
| Warranty | 15 Years |
Details
Components
 |
 |
 |
 |

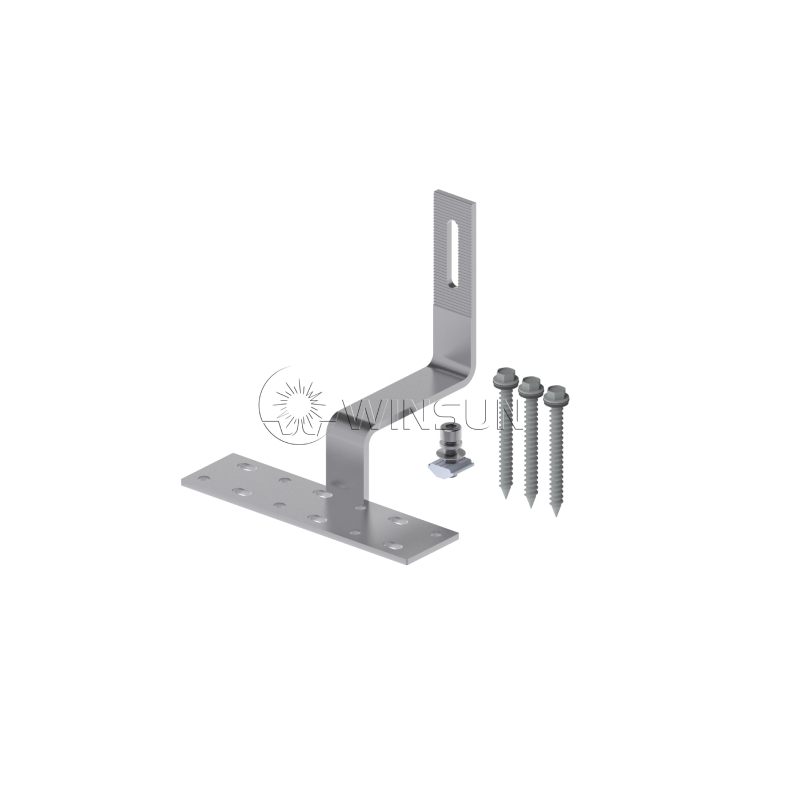

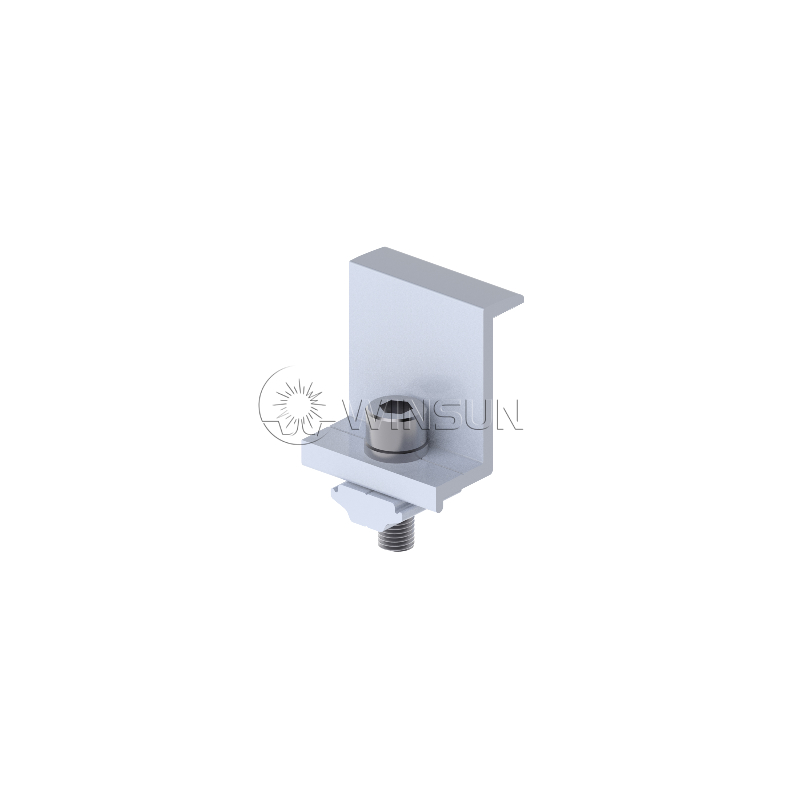

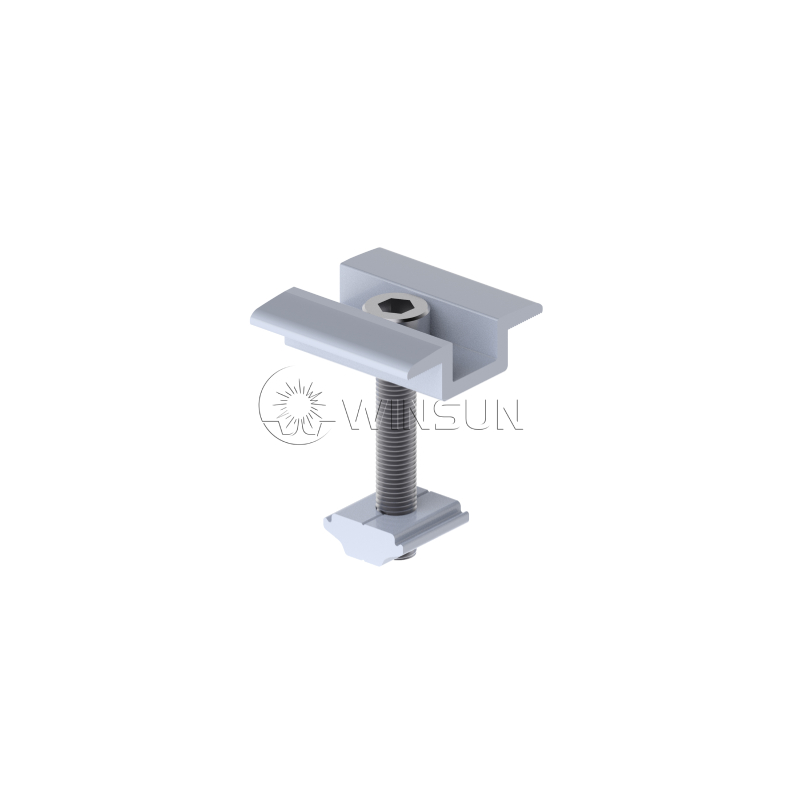

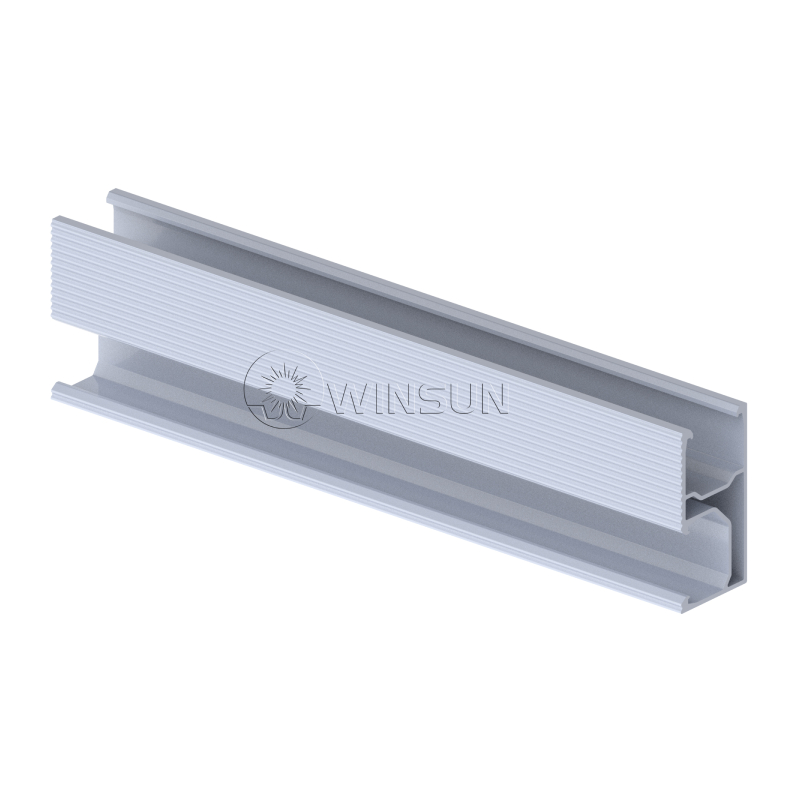

| R48 Rail | 1# Tile Roof Hook | Middle Clamp Kit | End Clamp Kit |
1.Aluminum solar mounting rail,stainless steel tile roof hook.Premium material,long service life. 2.Multiple types of hooks are available for selection. 3.Simple structure,fast installation.
Read More
1.All aluminum structure. 2.All products are pre-assembled to the greatest extent before delivery. 3.No MOQ,any quantity can be ordered.
Read More
1.Aluminum tile roof hook with adjustable base plate and bracket. 2.All aluminum components are anodized for improved aesthetics and superior corrosion resistance. 3.No MOQ,any quantity can be ordered.
Read More
1.Stainless steel tile roof hook with adjustable base plate and bracket. 2.Quick-mounting clamp with a push-in design for faster and easier installation. 3.Clamp ajustable, suitable for fastening solar modules from 30mm to 40mm.
Read More
1.Adjustable tile roof hook, which can be installed horizontally and vertically. 2.Universal clamp which can be used as middle clampand end clamp. 3.All-aluminum structure, pre-installed to the maximum extent before delivery.
Read More
