Tile Roof Mounting System

Home Tile Roof Mounting System

Tile Roof Solar Mounting System With Quick-mounting Clamp & Adjustable Roof Hook

Tile Roof Solar Mounting System With Quick-mounting Clamp & Adjustable Roof Hook

1.Stainless steel tile roof hook with adjustable base plate and bracket.

2.Quick-mounting clamp with a push-in design for faster and easier installation.

3.Clamp ajustable, suitable for fastening solar modules from 30mm to 40mm.



  • Installation Site :

    Tile Roof
  • Wind Load :

    60m/s
  • Snow Load :

    2KN/m2
  • Material :

    AL6005-T5 & SUS304
  • Warranty :

    15 Years
  • Shipping Port :

    Xiamen Port,China

System Instruction



Winsun tile roof mounting bracket features 40x40 aluminum solar mounting rails, adjustable stainless steel hooks, and quick-mounting solar panel clamps.

In this system, the WS-TRH-T07 stainless steel hooks have adjustable base plate and brackets.

The solar panel clamps are also adjustable and compatible with PV modules ranging from 30mm to 40mm. They feature a push-in design for faster and easier installation.

Click for more tile roof hooks !



Technical Parameter



Installation Site Tile Roof
Material Aluminum 6005-T5 & SUS304 Stainless Steel
Wind Load 60m/s
Snow Load 2KN/m2
Tilt Angle 0°~60°(the same angle as roof)
PV Modules Framed or Frameless
Design Standard AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015
Certificate CE
Warranty 15 Years



Details

winsun adjustable tile roof hook solar mounting system

Components

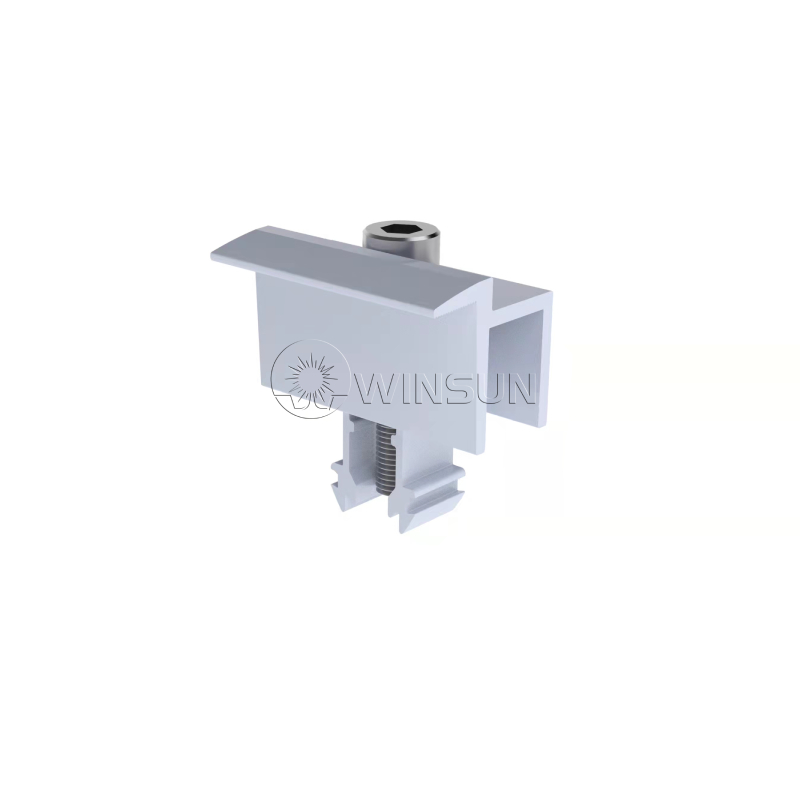

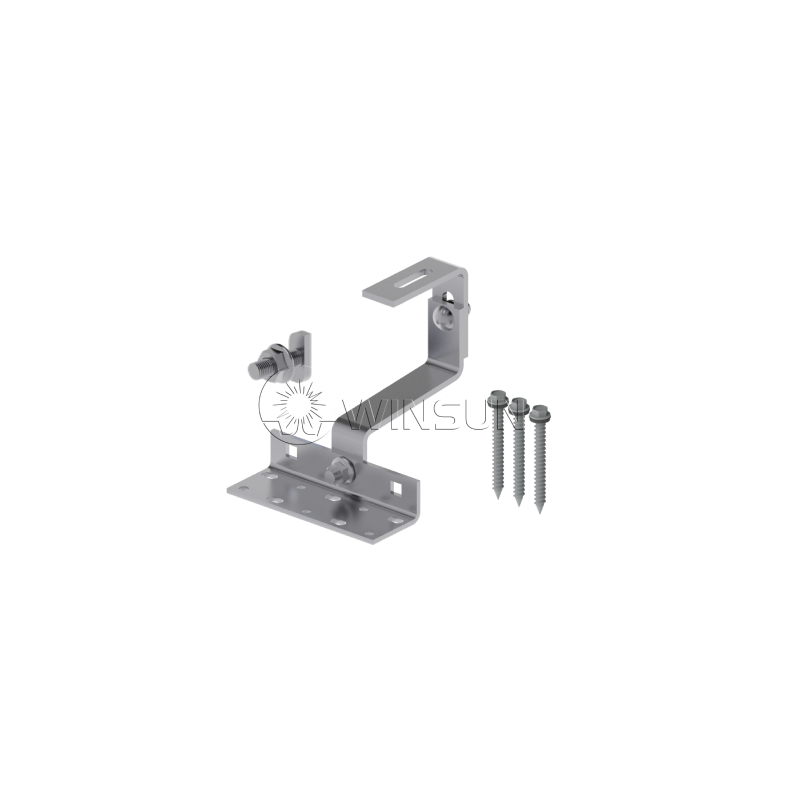

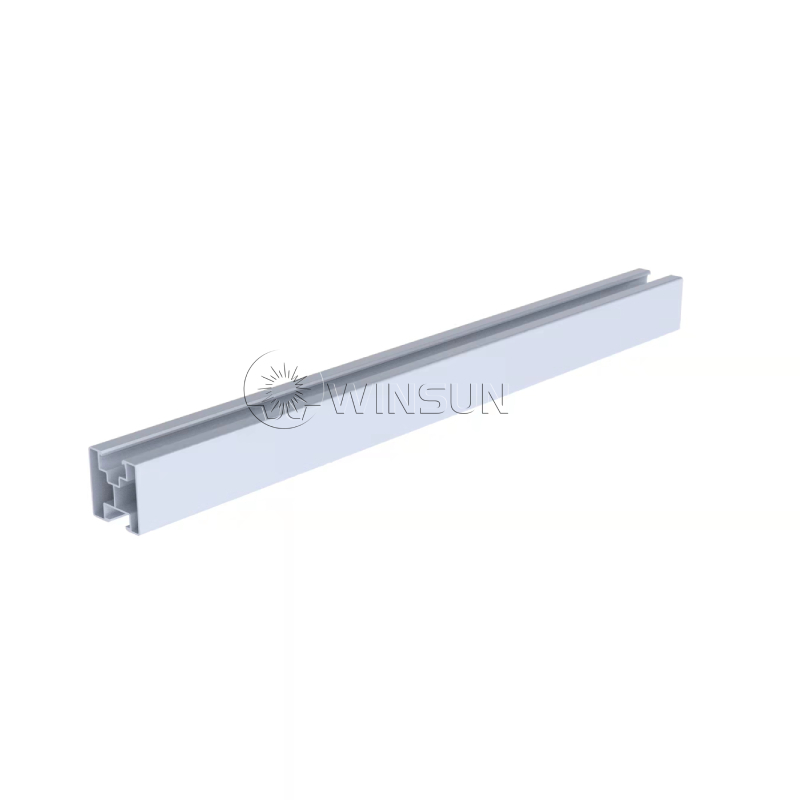

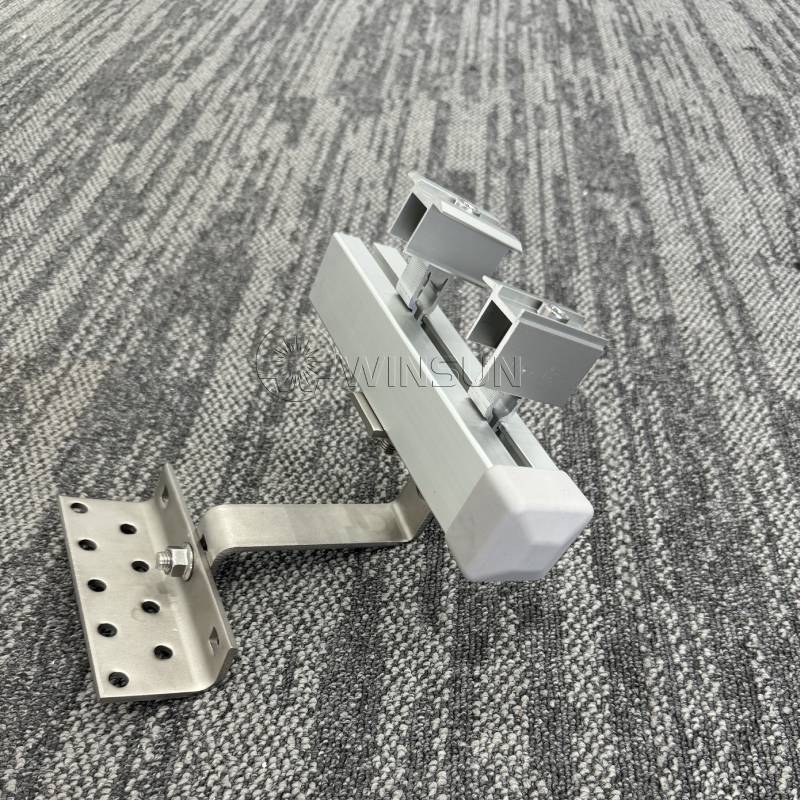

Winsun 40*40 solar mounting profile Winsun adjustable tile roof hook SUS 304 Winsun quick-mounting middle clamp kit Winsun quick-mounting end clamp kit

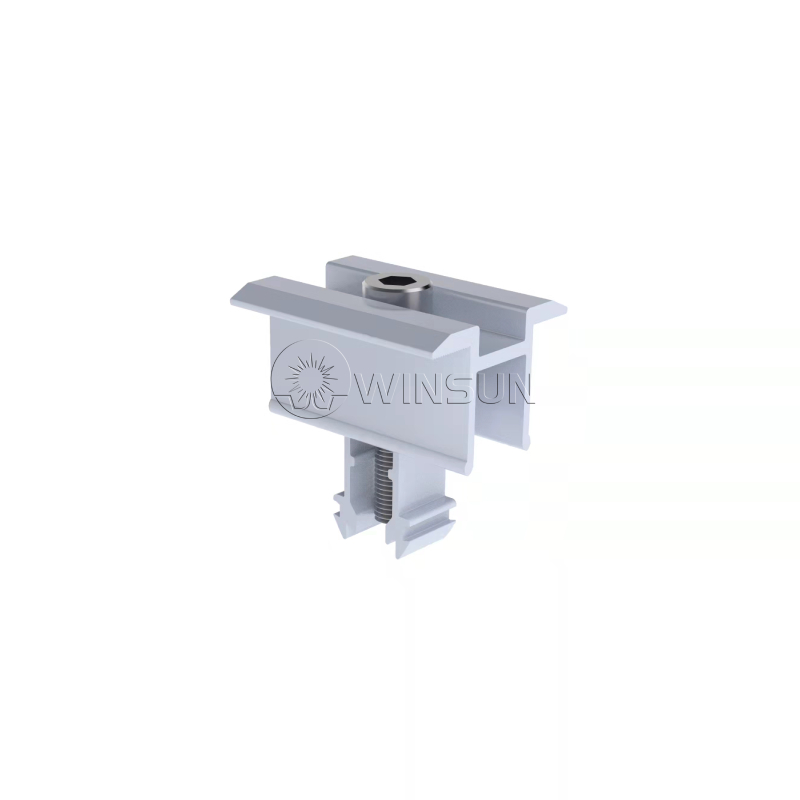

R40 Rail (40*40) 4# Aluminum Tile Roof Hook Quick-mounting Middle Clamp Kit Quick-mounting End Clamp Kit
