Adjustable Tilt PV Mounting System For Flat Roof Solar Panel Mounting
1.Both for concrete and metal roof.
2.Tilt angle adjustable.
3.Pre-assembled to the greatest extent before delivery.
Installation Site :
Flat RoofWind Load :
45m/sSnow Load :
1.5KN/m2Material :
AL6005-T5 & SUS304Warranty :
15 YearsShipping Port :
Xiamen Port,ChinaSystem Instruction

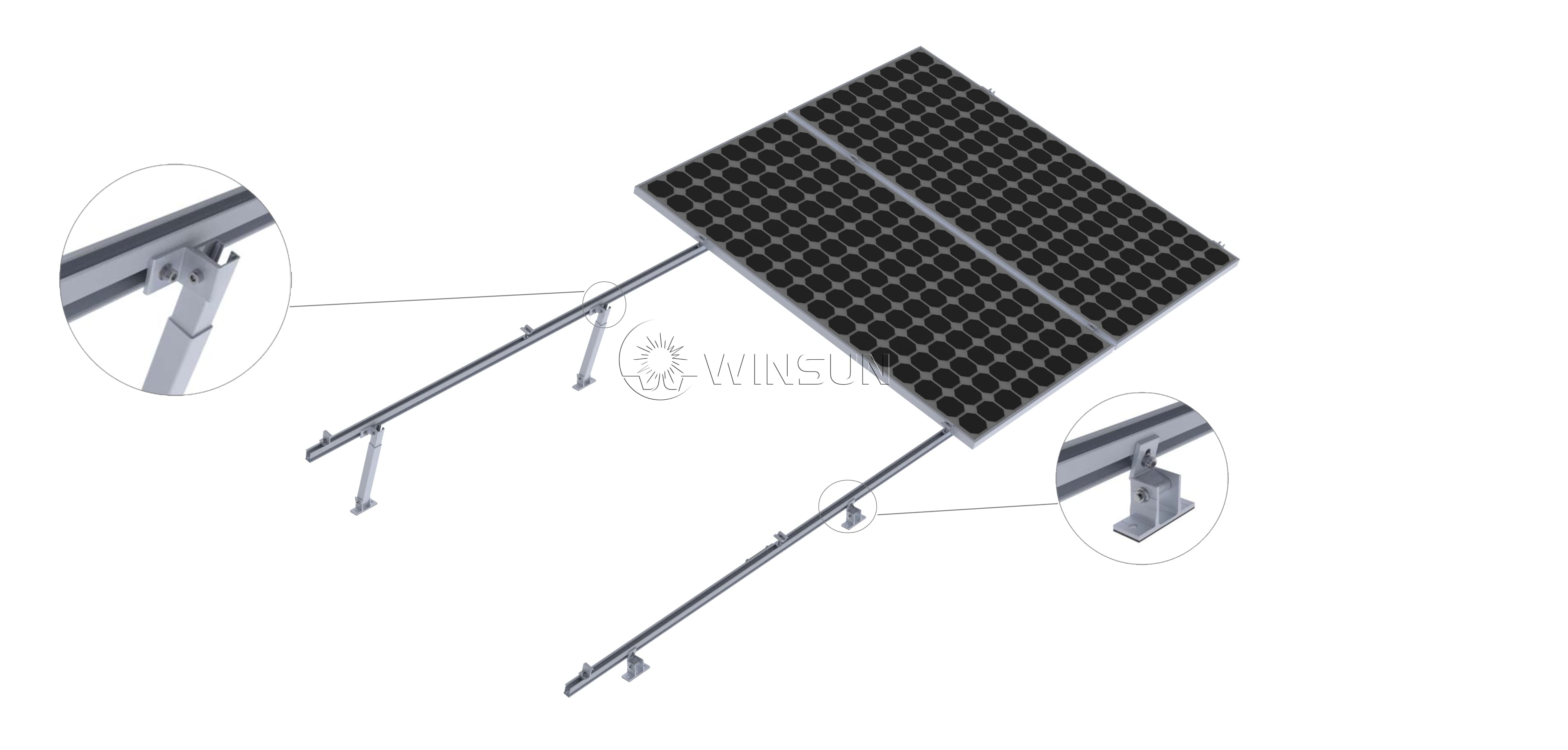

Winsun adjustable tilt mounting system is specially developed for flat roof PV mounting,suitable for metal roof and cement flat roof.There are many adjustable angles to choose from,0°~ 15°, 15°~ 30° and 30°~ 60°.In addition,there are also fixed angle tilt racking to choose from.
Click to learn more about the adjustable tilt mounting system for metal roofs.
Technical Parameter
| Installation Site | Flat Roof |
| Material | Aluminum 6005-T5 & SUS304 Stainless Steel |
| Wind Load | 45m/s |
| Snow Load | 1.5KN/m2 |
| Tilt Angle | 10°~ 15° / 15°~ 30° / 30°~ 60° |
| PV Modules | Framed or Frameless |
| Design Standard | AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015 |
| Warranty | 15 Years |
Details
Components
 |
 |
 |
 |

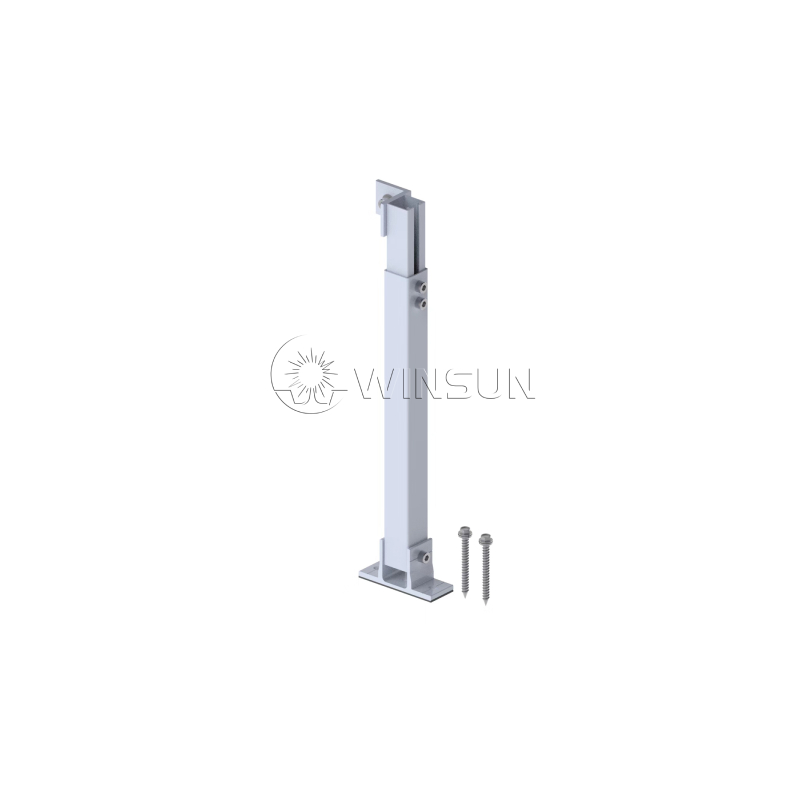

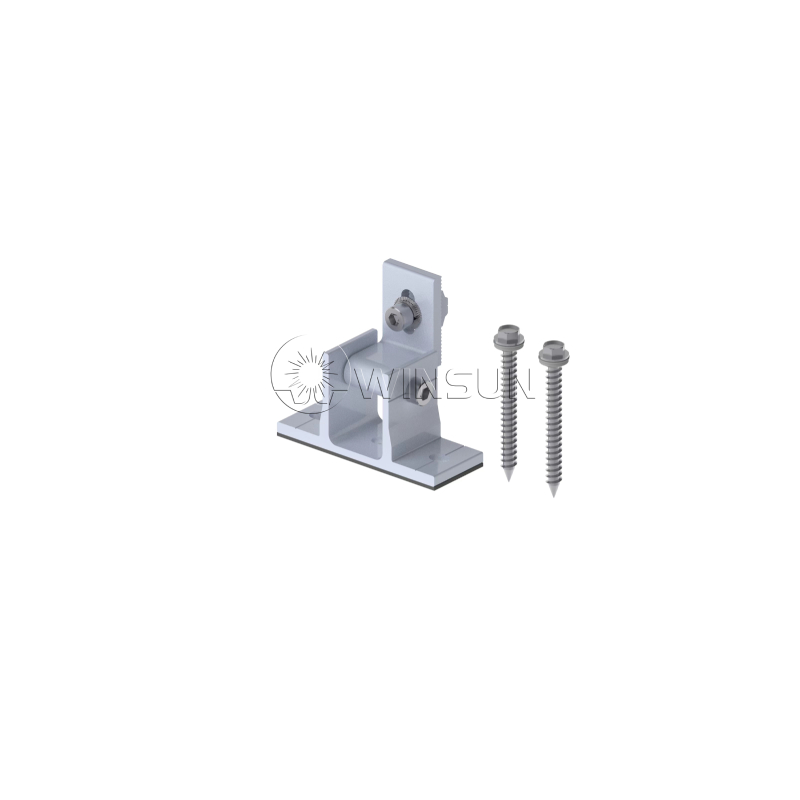

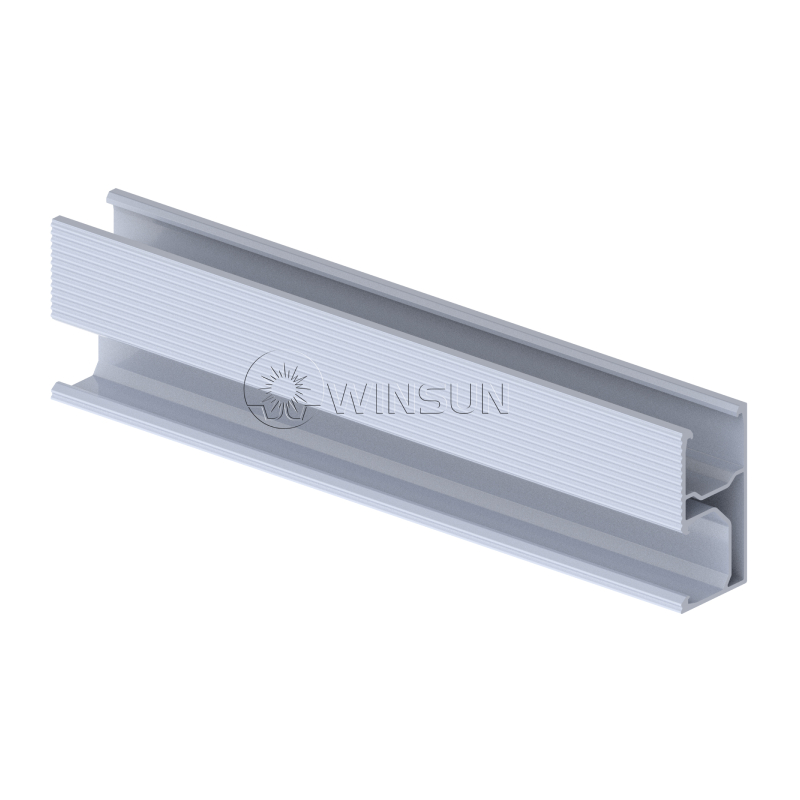

| Front Leg | Adjustable Rear Leg | R48 Rail | Middle Clamp Kit |
 |
|||
| End Clamp Kit |
1.Non-penetrationg flat roof solar panel mounting system. 2.Long-side installation, higher load capacity. 3.Simple structure,easier and faster to install.
Read More
1.There are fixed angle tripod and adjustable angle tripod to choose from. 2.Pre-assembled to the greatest extent before delivery. 3.Simple structure,easier and faster to install.
Read More
1.Tilt angle can be customized. 2.Simple structure,easier and faster to install. 3.Pre-assembled to the greatest extent before delivery.
Read More
1.Both for concrete and metal roof. 2.Tilt angle adjustable. 3.Pre-assembled to the greatest extent before delivery.
Read More
