Solar Panel Tilt Mount Triangle Solar Mounting System For Flat Roof

Solar Panel Tilt Mount Triangle Solar Mounting System For Flat Roof

1.There are fixed angle tripod and adjustable angle tripod to choose from.

2.Pre-assembled to the greatest extent before delivery.

3.Simple structure,easier and faster to install.



  • Installation Site :

    Flat Roof
  • Wind Load :

    60m/s
  • Snow Load :

    2KN/m2
  • Material :

    AL6005-T5 & SUS304
  • Warranty :

    15 Years
  • Shipping Port :

    Xiamen Port,China

System Instruction



Winsun triangle solar mounting system is specially designed for solar panel installation on flat roofs and is suitable for both metal and concrete rooftops. Available in fixed-angle and adjustable-angle triangular frames, the angle can be customized. The triangle brakets are pre-assembled to the maximum extent before delivery, making on-site installation faster and easier.



Technical Parameter



Installation Site Flat Roof
Material Aluminum 6005-T5 & SUS304 Stainless Steel
Wind Load 60m/s
Snow Load 2KN/m2
Tilt Angle 0° ~ 60°
PV Modules Framed or Frameless
Design Standard AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015
Warranty 15 Years



Details

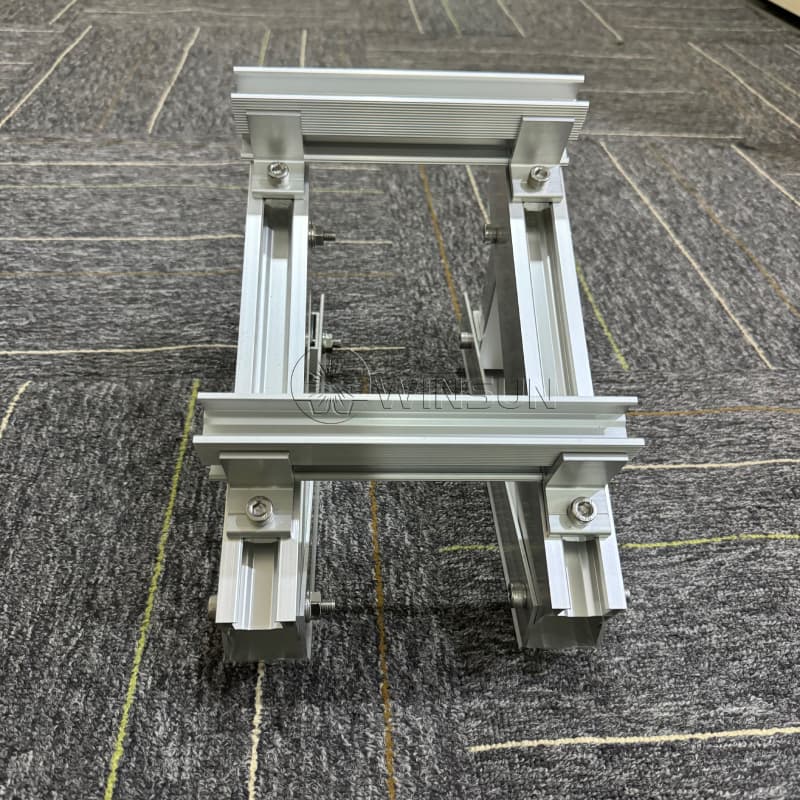

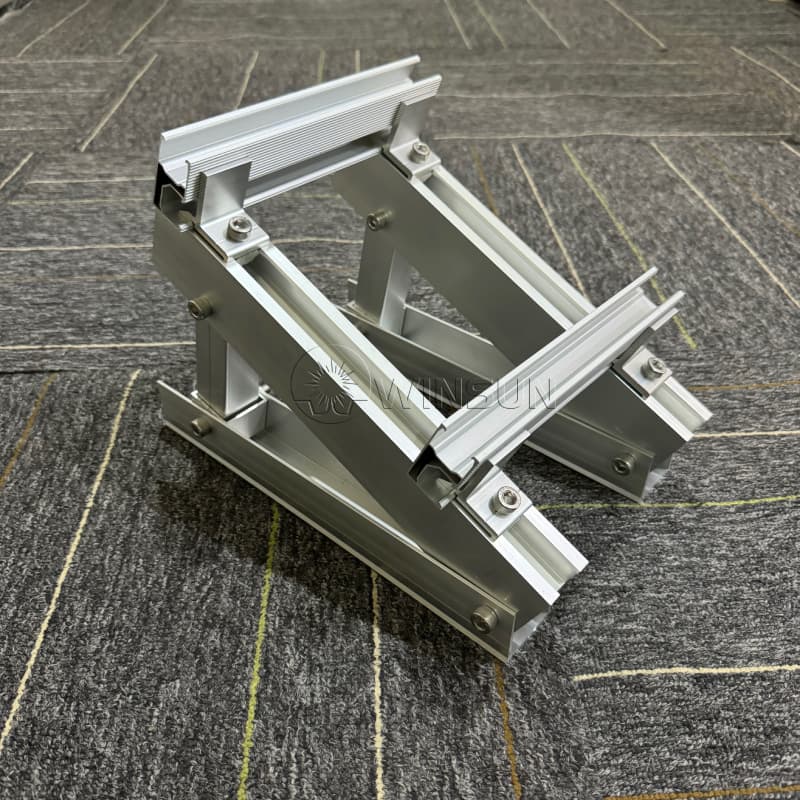

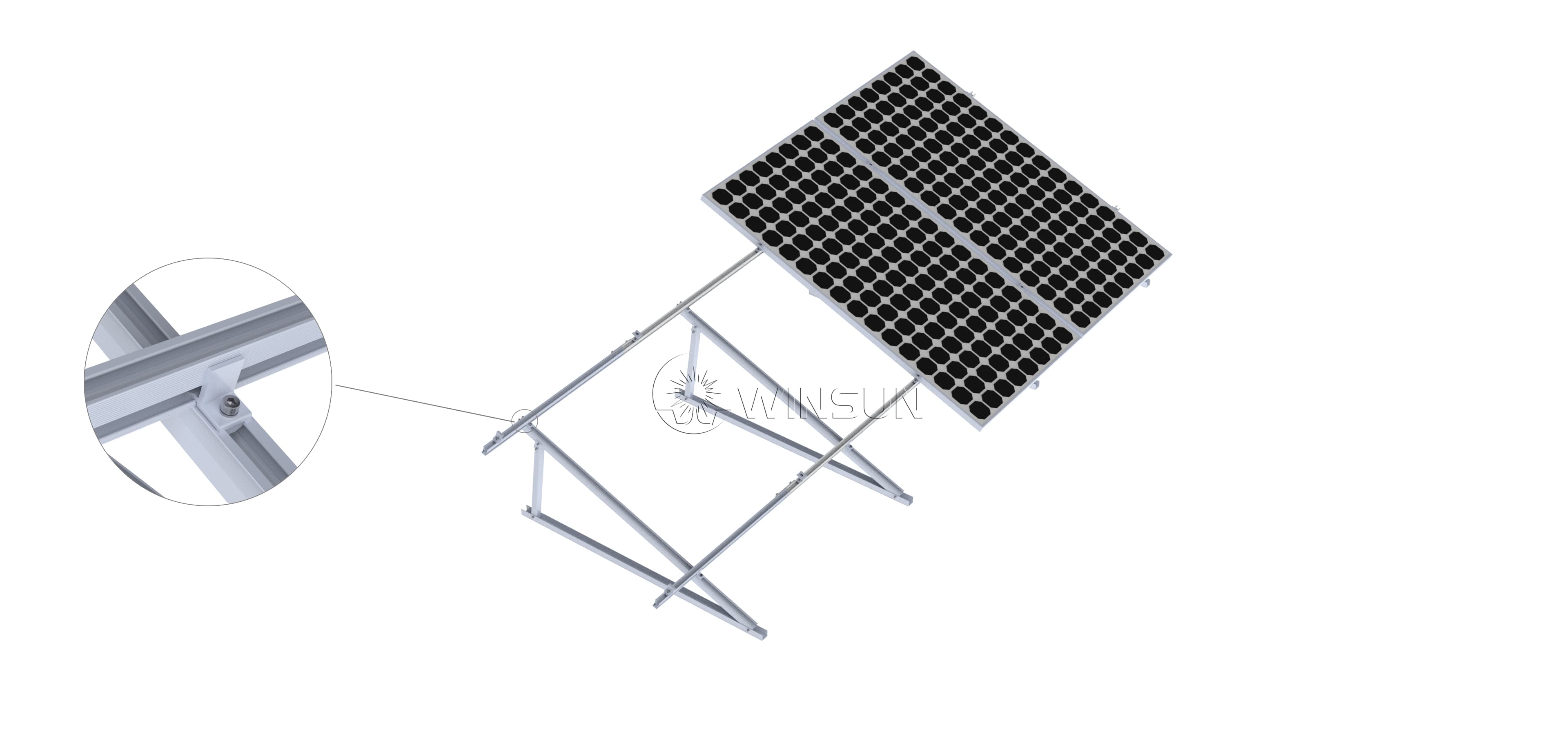

triangle solar mounting system for flat roof solar tilt mounts

Components

triangle bracket for solar panel tilt mounts aluminum solar mounting rail rail clamp kit PV modules fastener-middle clamp

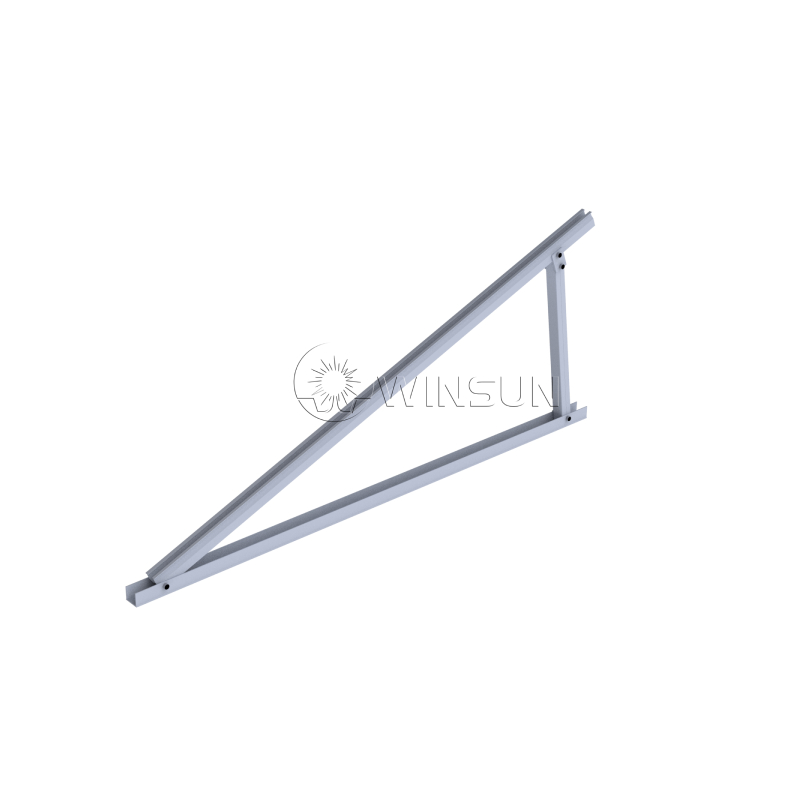

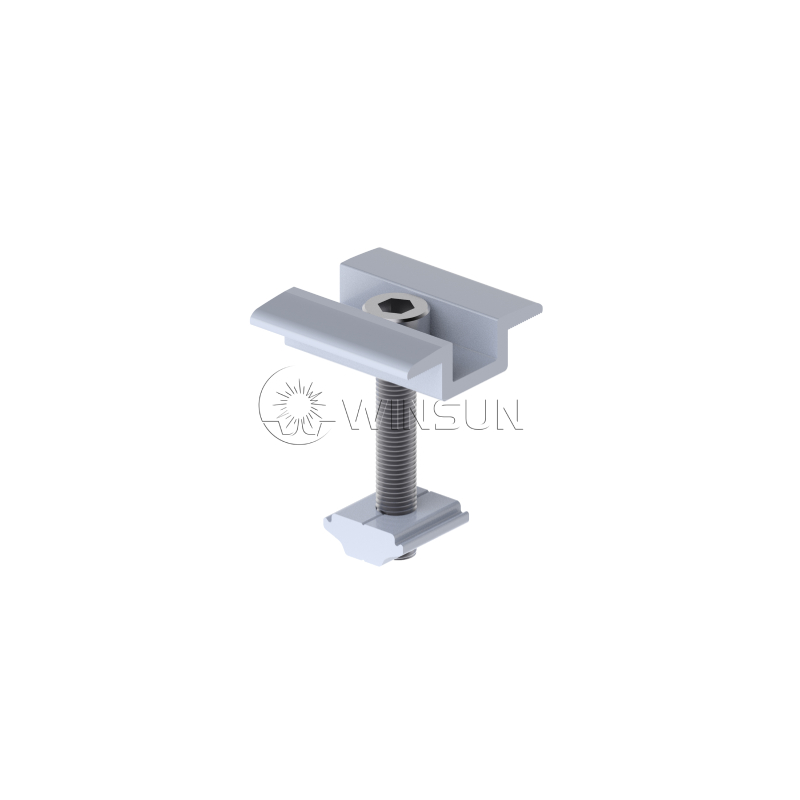

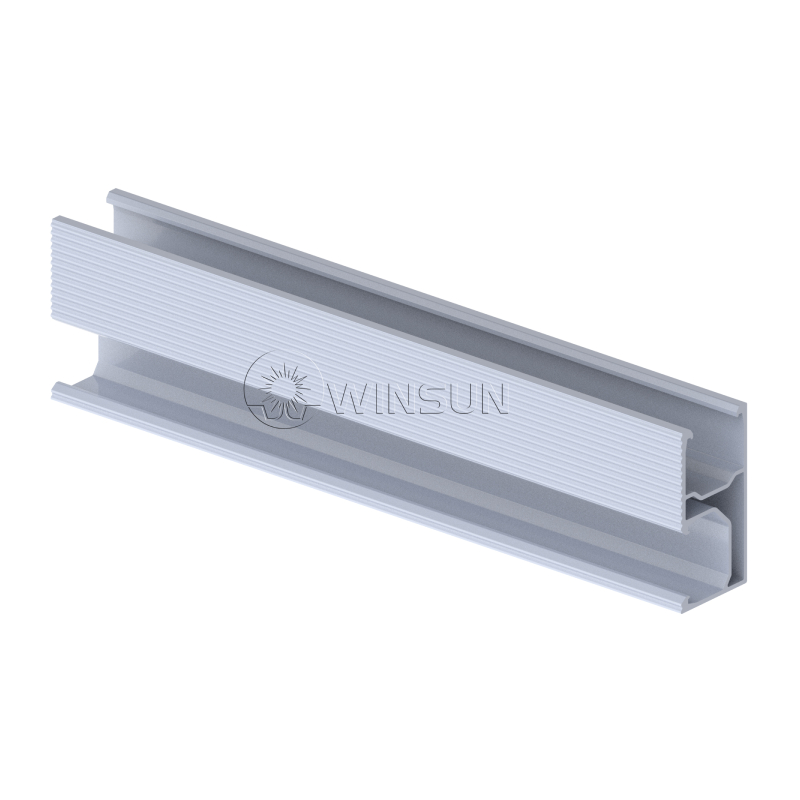

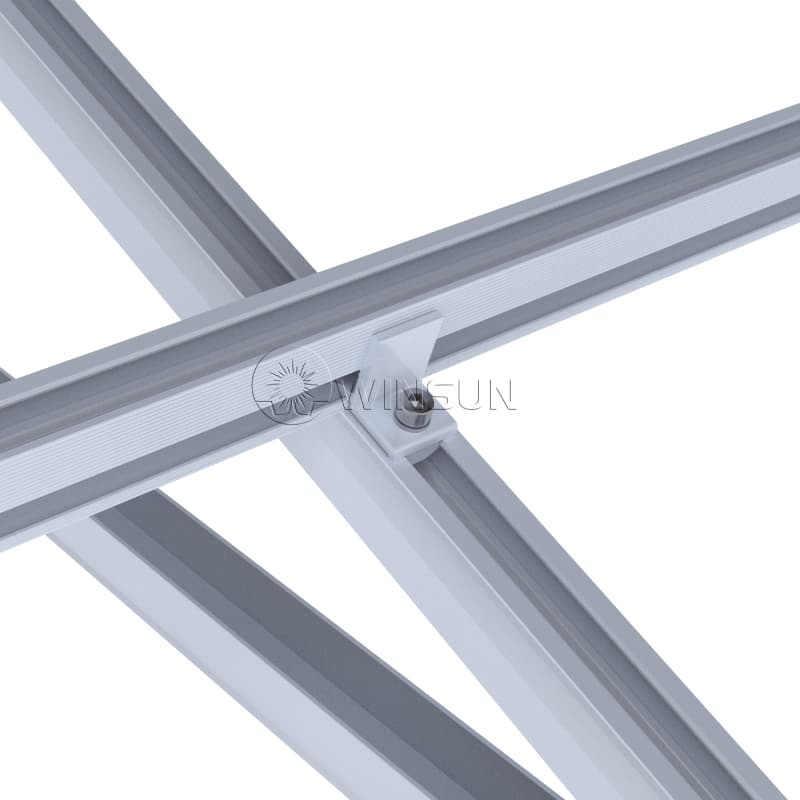

Triangle Bracket R48 Solar Mounting Rail Rail Clamp Kit Middle Clamp Kit
PV modules fastener-end clamp

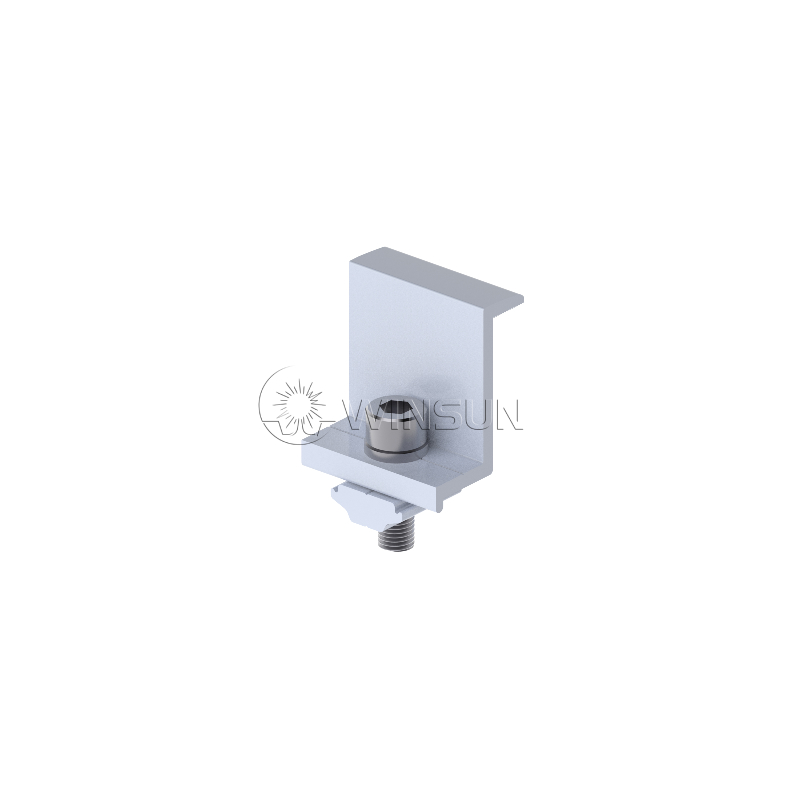

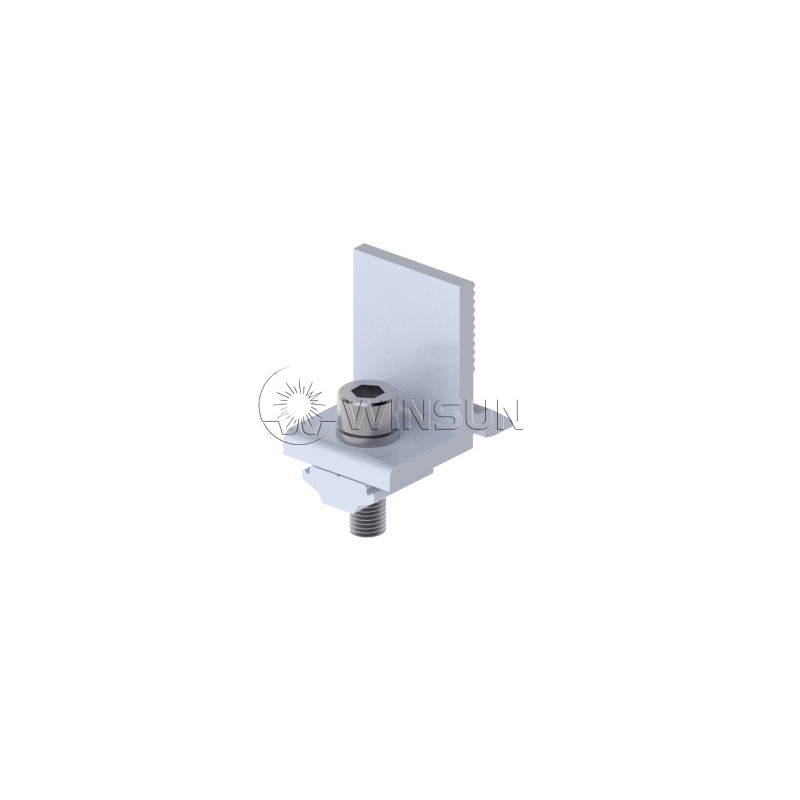

End Clamp Kit







Get A Free Quote !
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
