Ballasted Mounting System For Flat Roof Solar Installation Without Penetrating

Ballasted Mounting System For Flat Roof Solar Installation Without Penetrating

1.Non-penetrationg flat roof solar panel mounting system.

2.Long-side installation, higher load capacity.

3.Simple structure,easier and faster to install.

Installation Site :
Flat Roof
Wind Load :
40m/s
Snow Load :
2KN/m2
Material :
AL6005-T5 & SUS304
Warranty :
15 Years
Shipping Port :
Xiamen Port,China

Inquire Now

Product categories

New products

Product Details

System Instruction

Winsun ballasted mounting system is developed for flat roof solar panel mounting.It requires no drilling or penetration of the roof surface.

Winsun’s ballast system is designed with a focus on both convenience and safety during installation. Its practical design incorporates pre-assembly of components to streamline on-site installation, making it faster and easier. The system is specifically designed for long-side installation, safer and in compliance with the installation specifications of solar panel manufacturers.

Technical Parameter

Installation Site	Flat Roof
Material	Aluminum 6005-T5 & SUS304 Stainless Steel
Wind Load	40m/s
Snow Load	2KN/m2
Tilt Angle	10°/15°；other angles available upon request
PV Modules	Framed or Frameless
Design Standard	AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015
Certificate	CE
Warranty	15 Years

Details

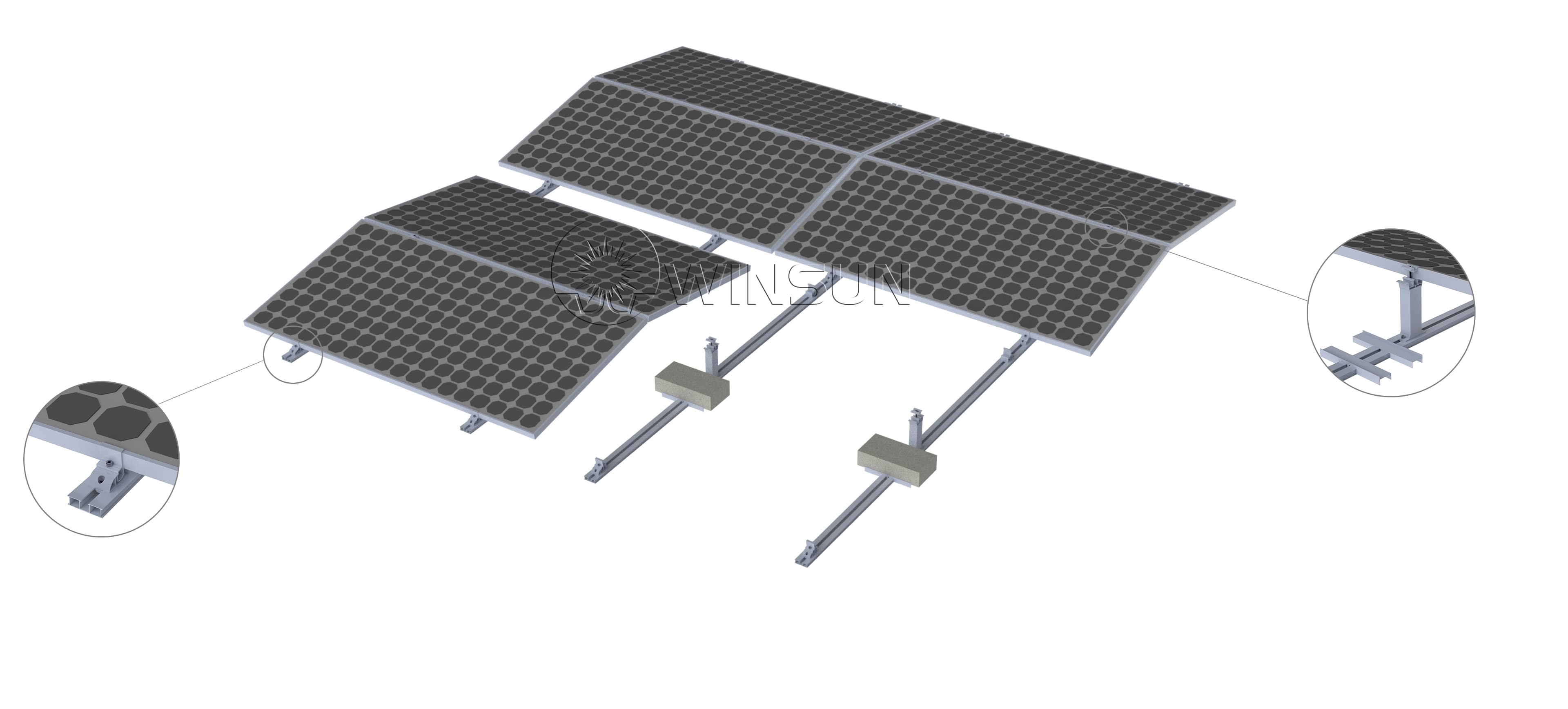

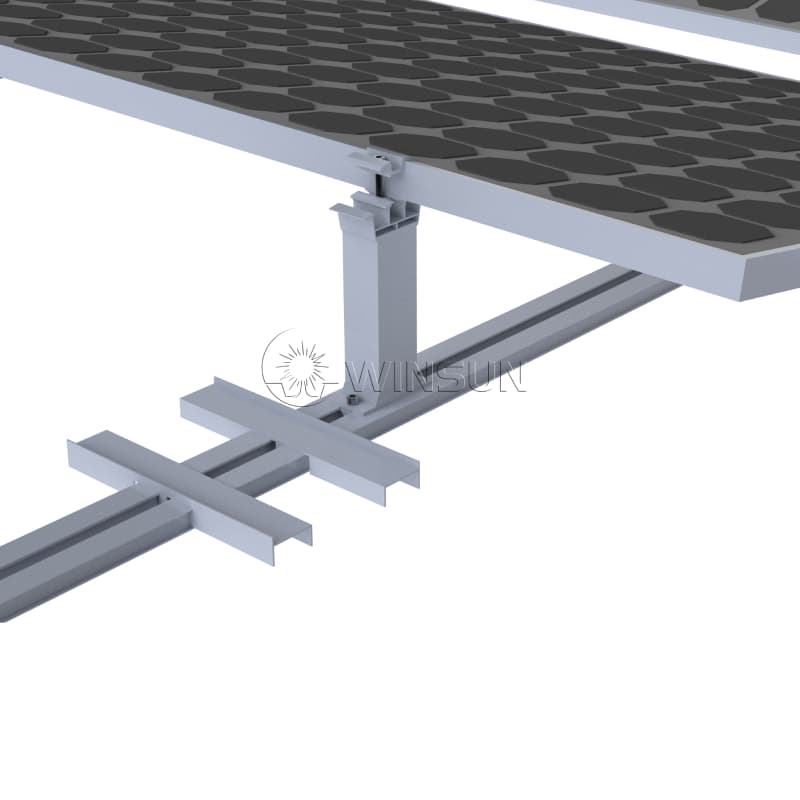

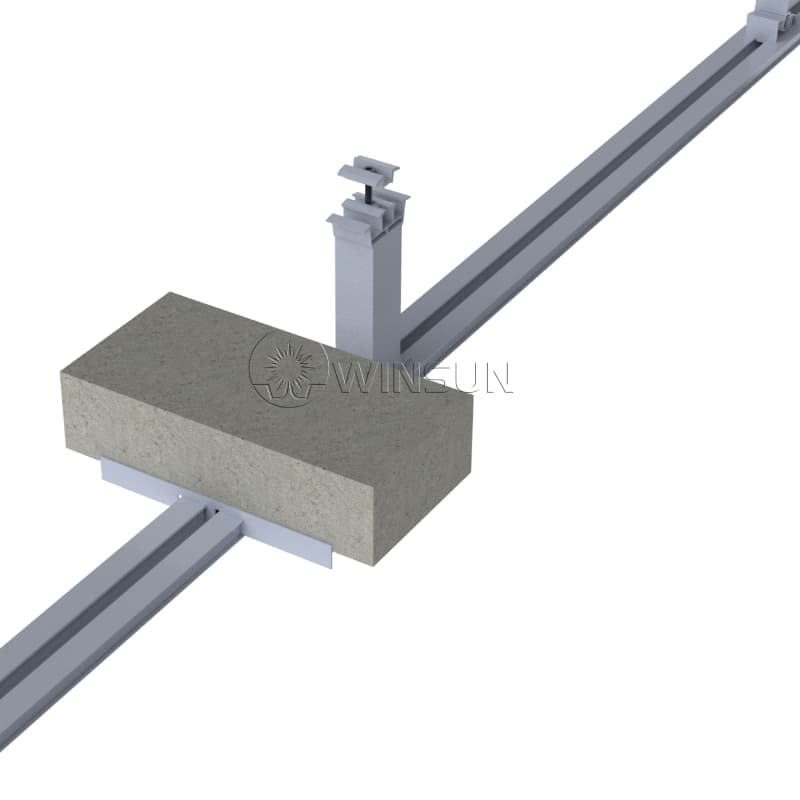

Winsun ballasted mounting system

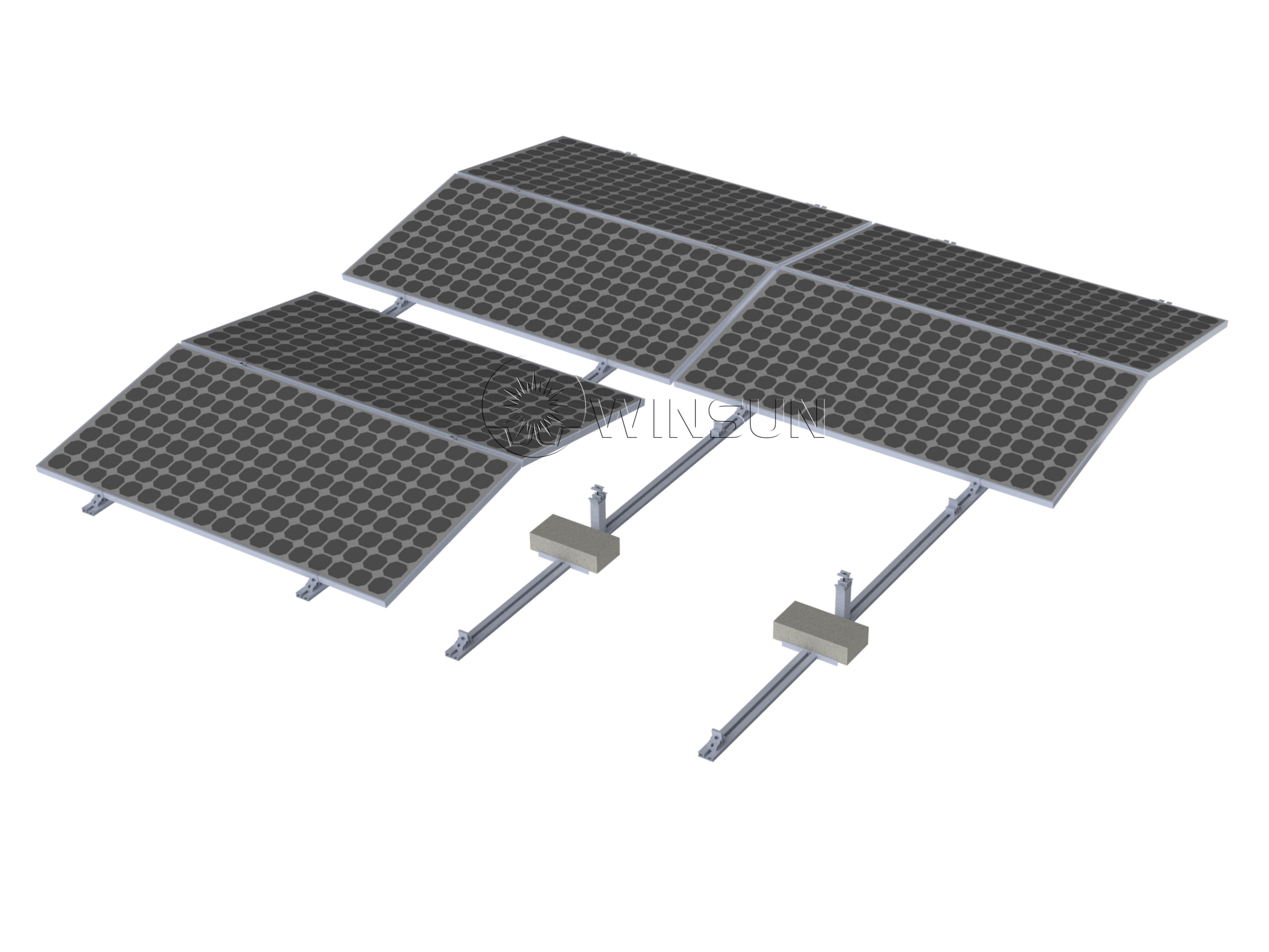

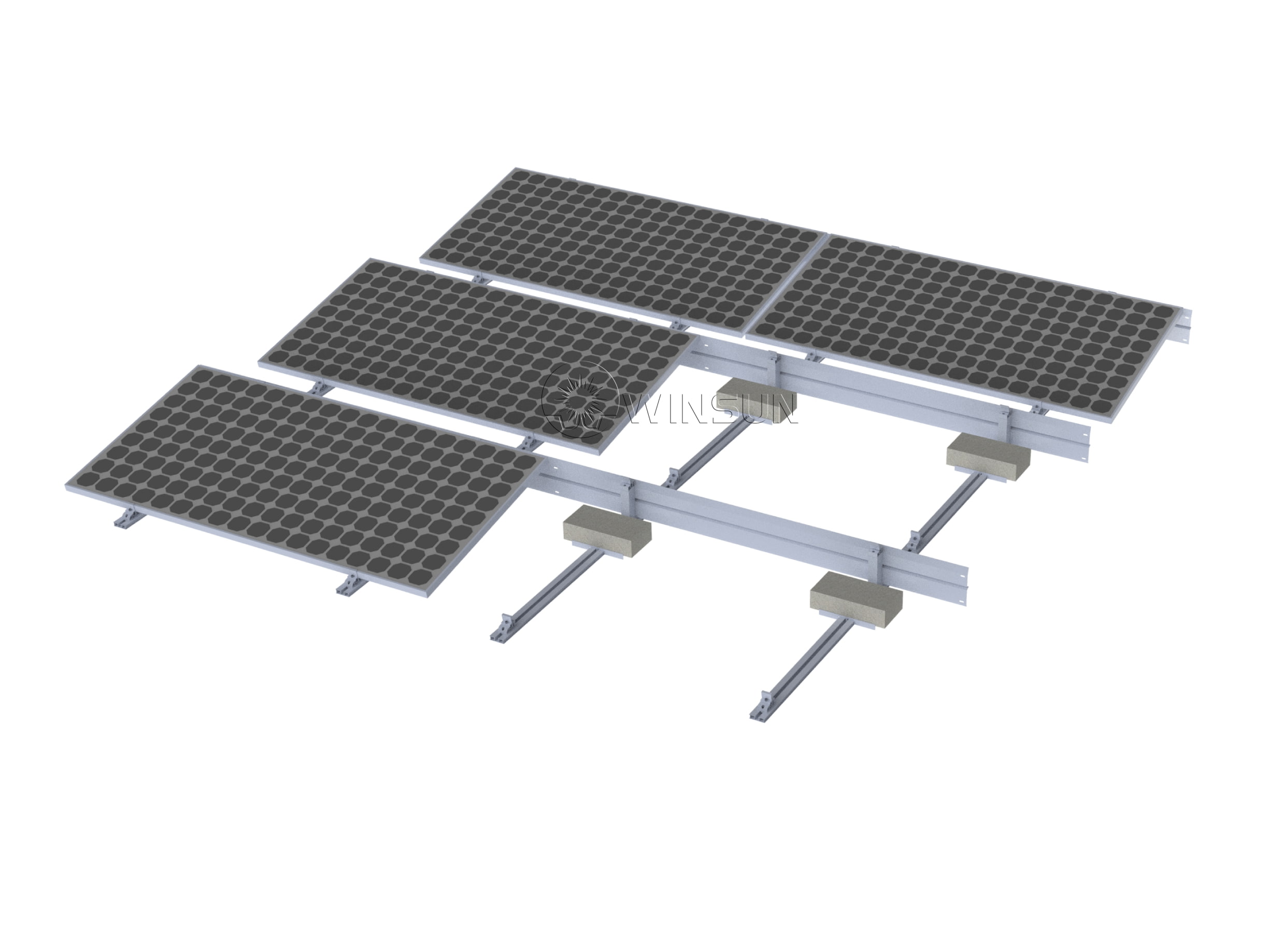

East-West Ballasted Mounting System	South Ballasted Mounting System

Components

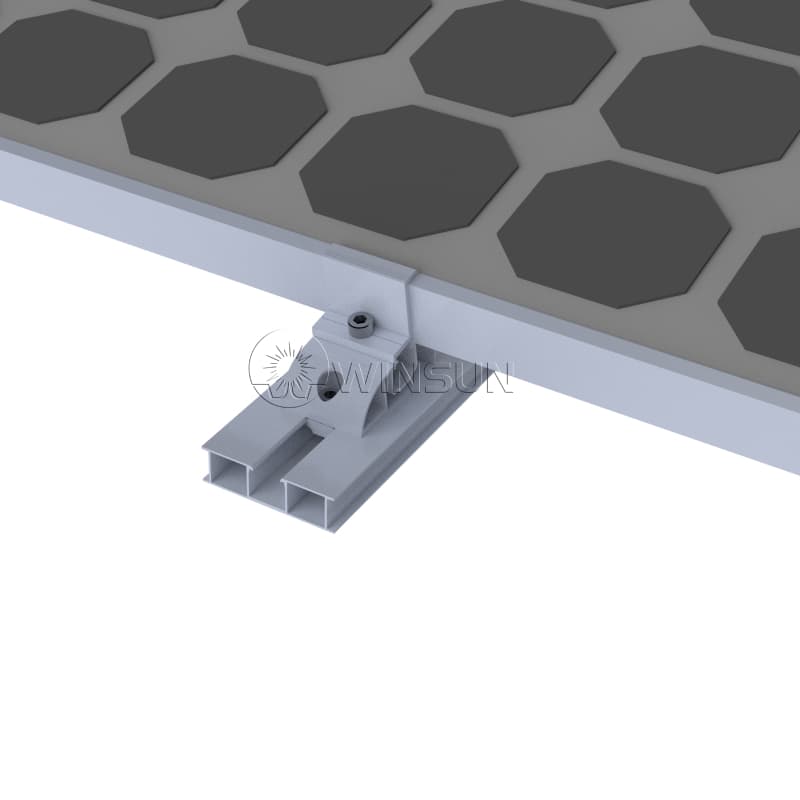

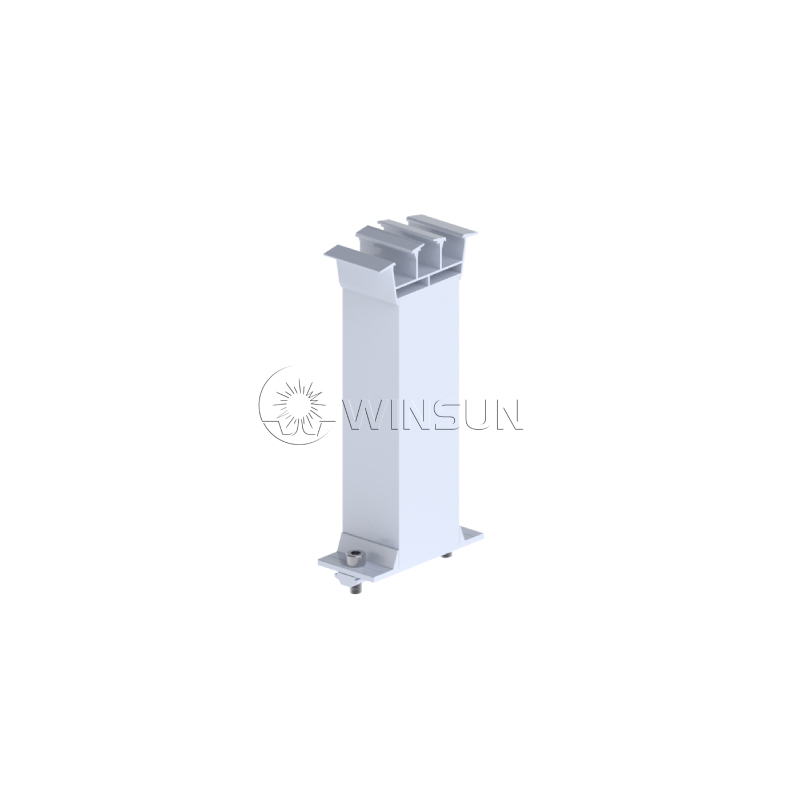

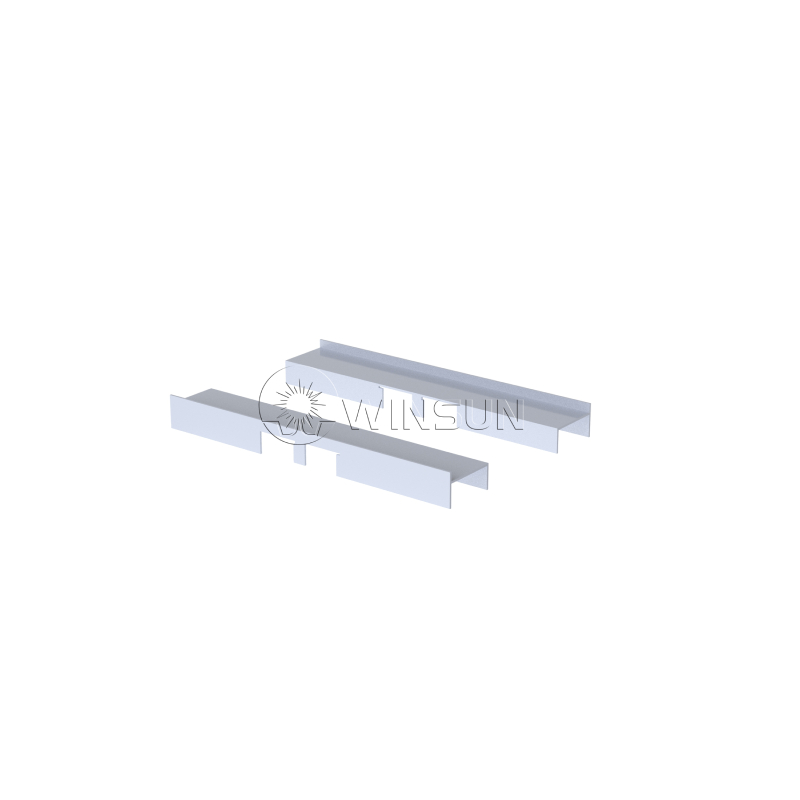

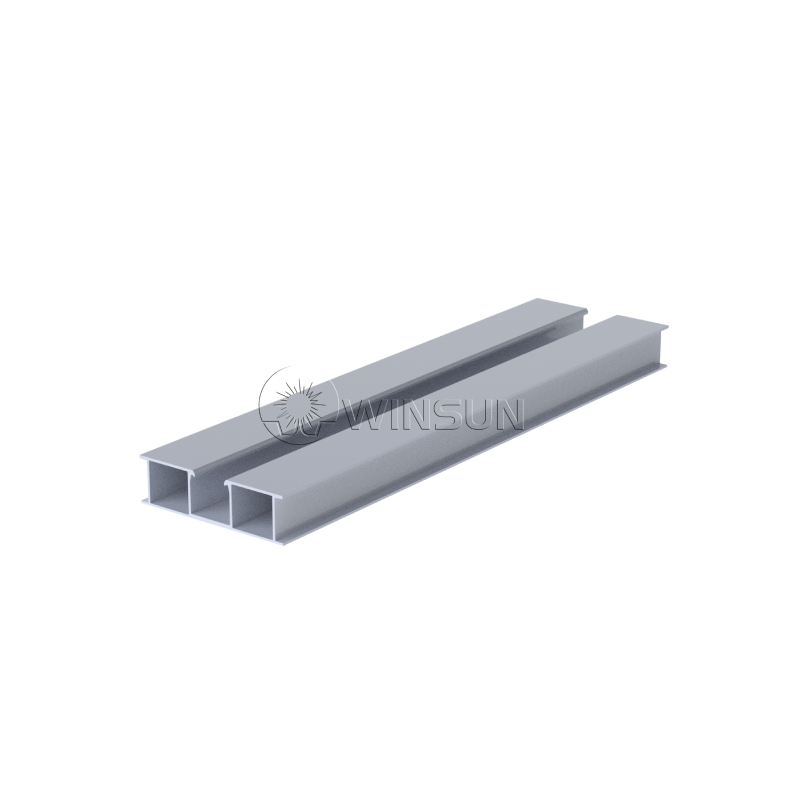

R22 Base Rail	Front Leg	Rear Leg	Ballasted Tray

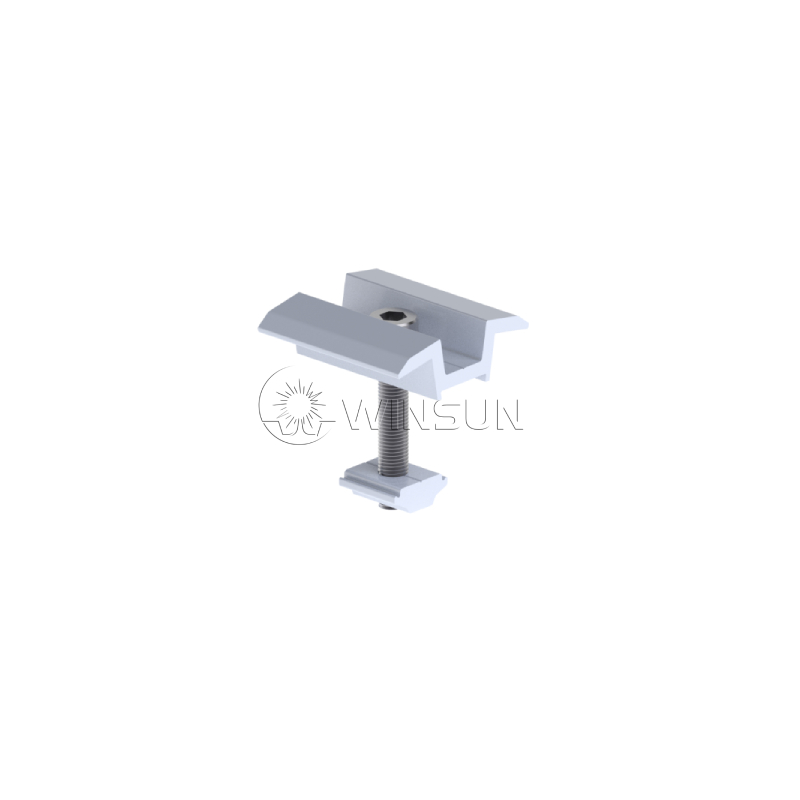

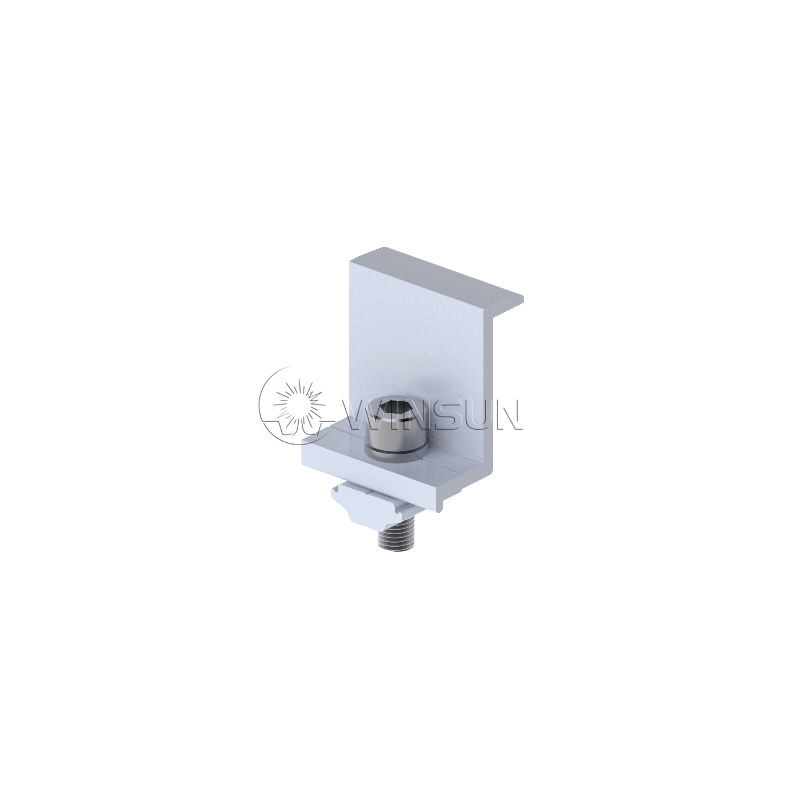

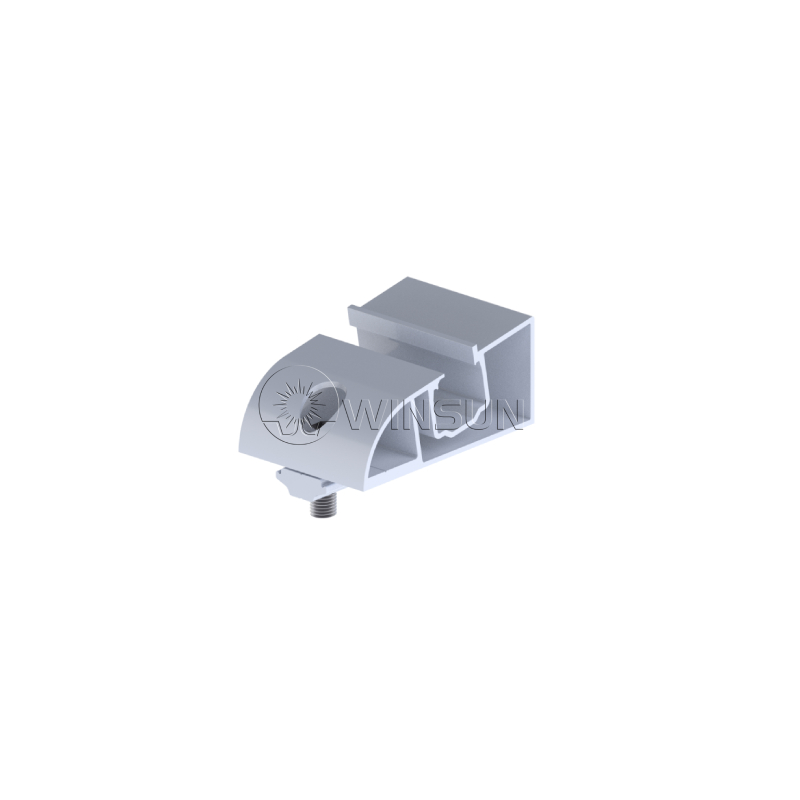

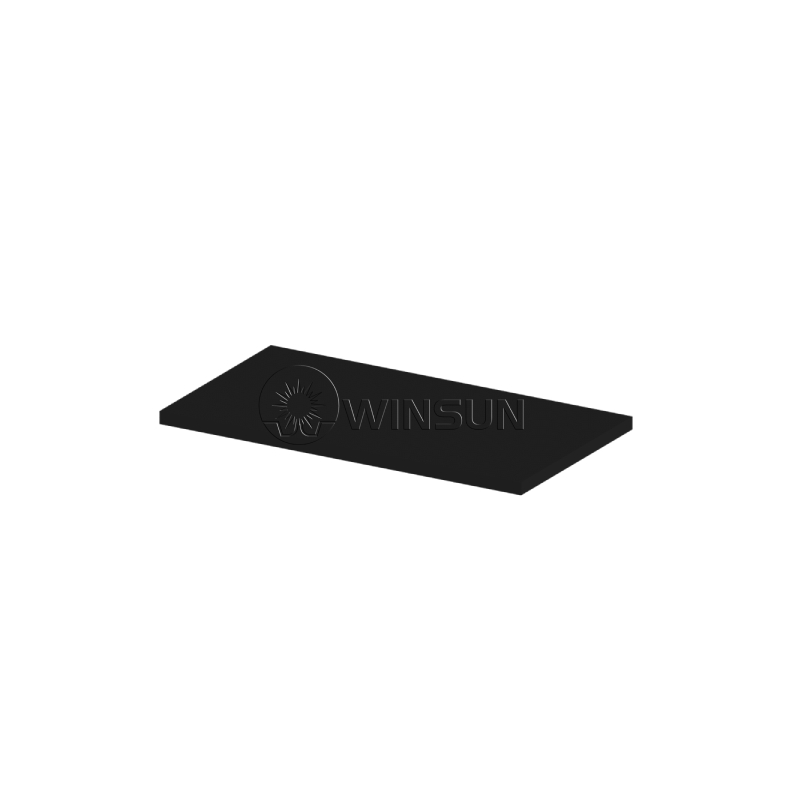

Middle Clamp Kit	End Clamp Kit	Rubber Pad
