1.Ground screw foundation and concrete base foundation optional.
2.Various types of brackets are available to meet different load requirement.
3.Maximum pre-assembly is carried out before shipment, making on-site installation faster and easier.
Installation Site :
Opend FieldWind Load :
60m/sSnow Load :
2KN/m2Material :
AL6005-T5 & SUS304Warranty :
15 YearsShipping Port :
Xiamen Port,ChinaSystem Instruction

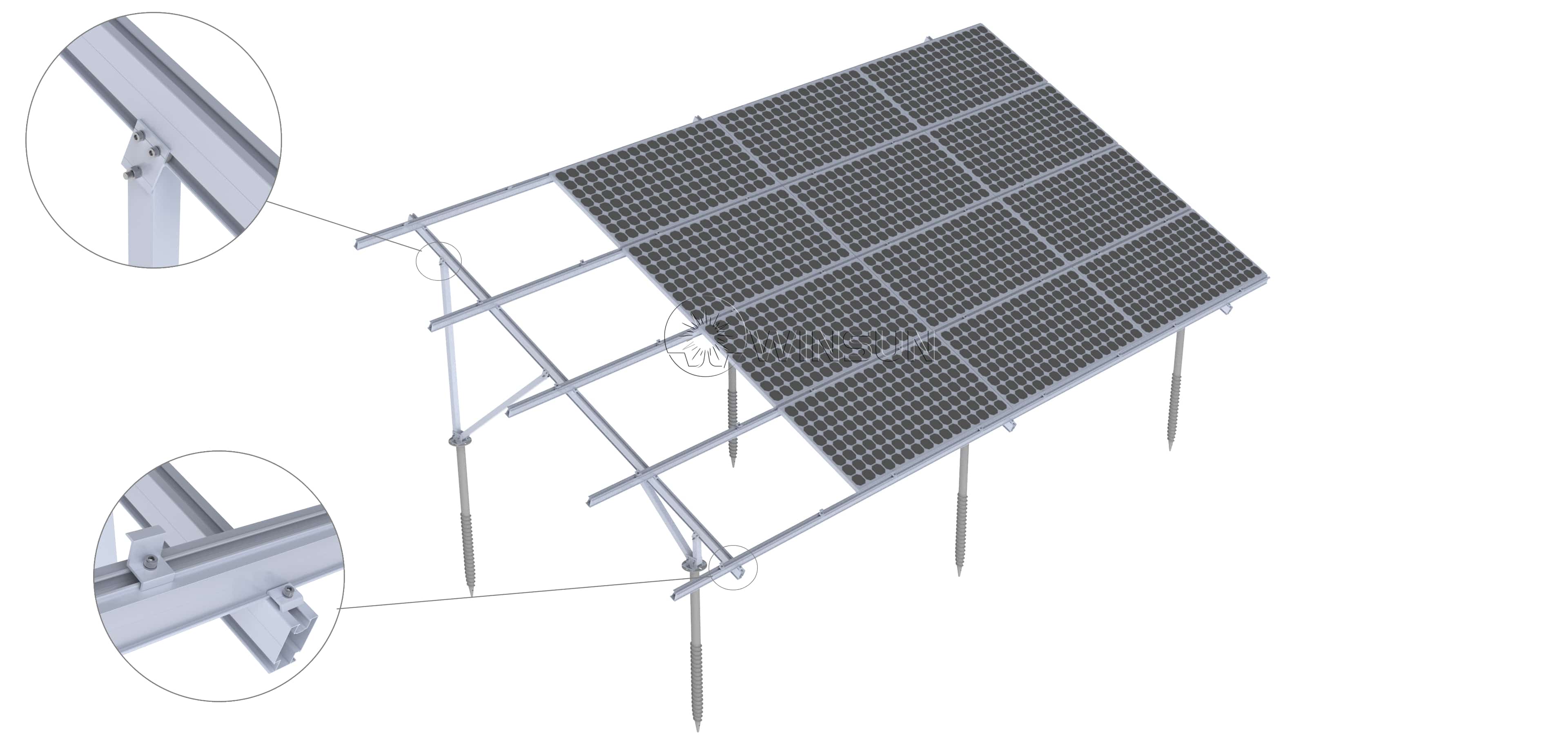

Winsun aluminum ground mounting system is developed for ground solar mounting.The system is made of aluminum and pre-assembled to the greatest extent before shipment, which makes the installation easier and faster, and greatly saves the labor cost.It is suitable for both large photovoltaic power stations and small solar energy storage systems.
For the foundation,there are ground screw and cement pier to choose from，which can meet different installation conditions and budgets.
Technical Parameter
| Installation Site | Open Field |
| Material | Aluminum 6005-T5 & SUS304 Stainless Steel |
| Wind Load | 60m/s |
| Snow Load | 2KN/m2 |
| Tilt Angle | 0°~60° |
| Foundation | Ground Screw or Concrete Base |
| PV Modules | Framed or Frameless |
| Design Standard | AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015 |
| Certificate | CE |
| Warranty | 15 Years |
Details
|
Foundation Type
|
|
 |
 |

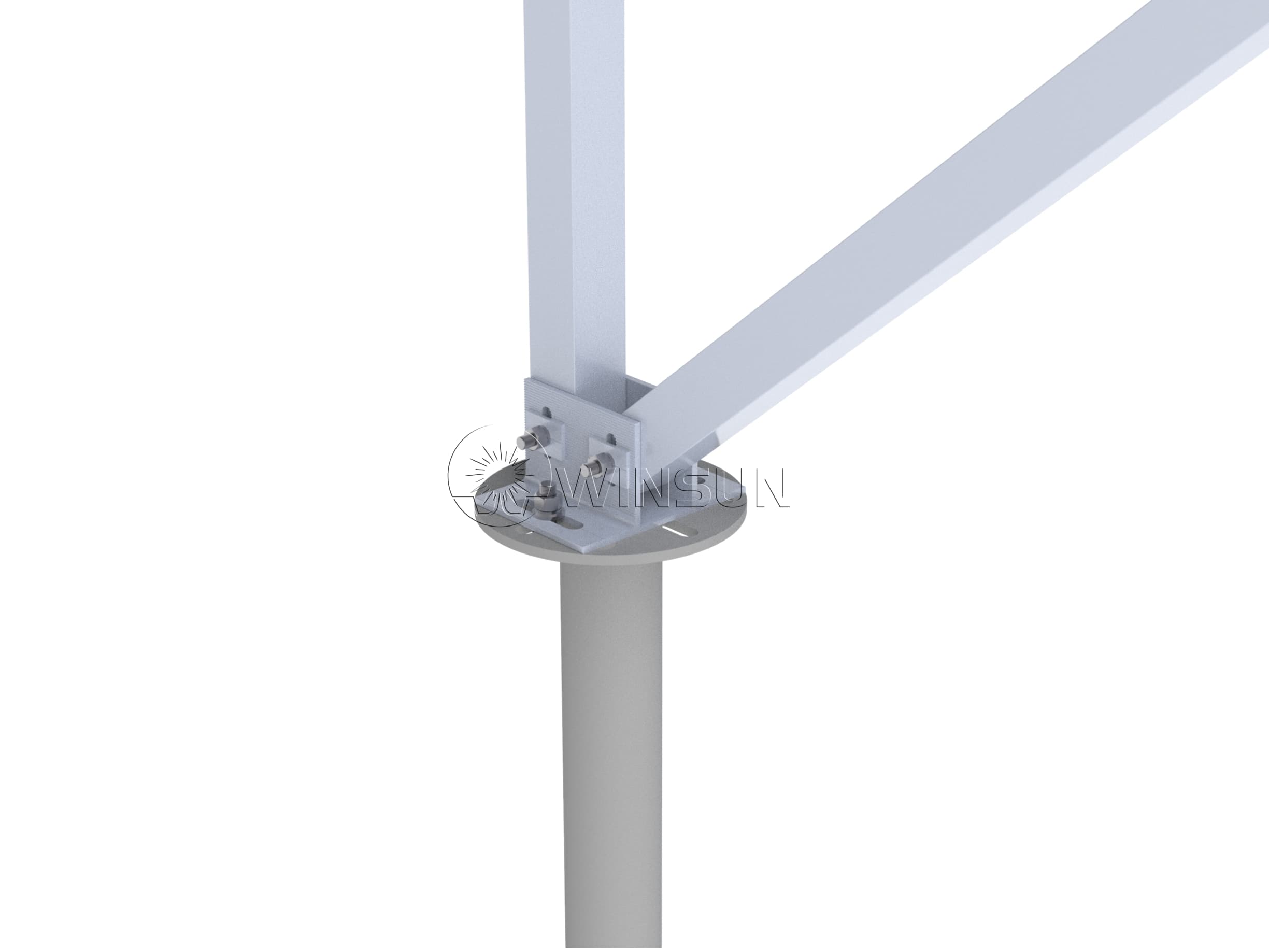

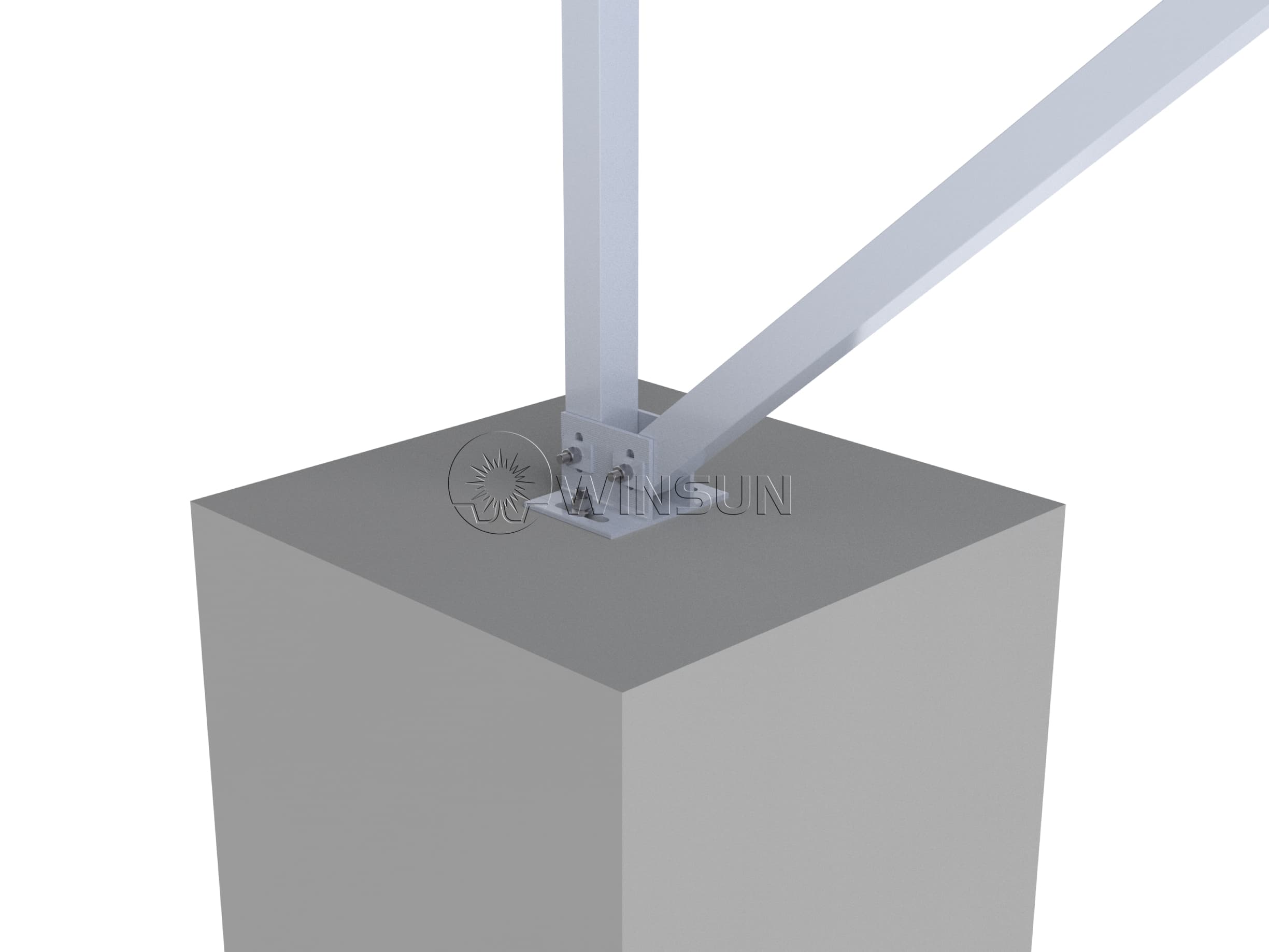

| Concrete Base Foundation | Ground Screw Foundation |
| Pre-assembled Support Type | |||
 |
 |
 |
 |

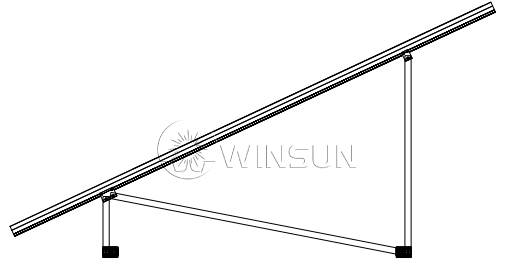

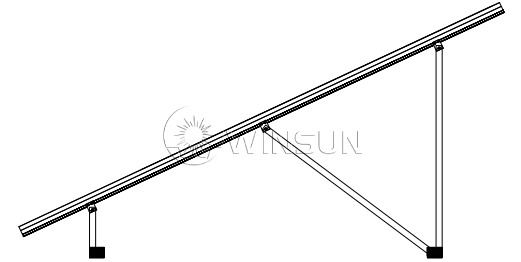

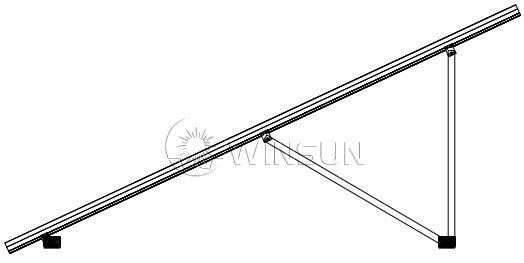

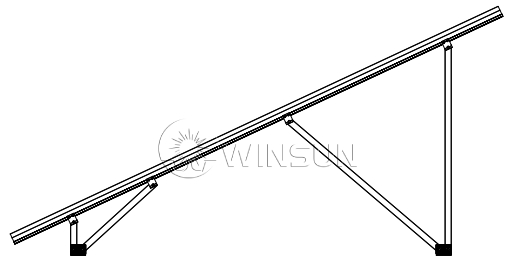

| N-type Support | W-type Support | V-type Support | VI-type Support |
1.Ground screw foundation and concrete base foundation optional. 2.Various types of brackets are available to meet different load requirement. 3.Maximum pre-assembly is carried out before shipment, making on-site installation faster and easier.
