Steel Solar Panel Ground Mounting Structure For Photovoltaics Power Plant
1.Three foundations are available,ramming post,ground screw foundation,concrete base foundation.
2.The structure is made of high-strength carbon steel with anti-corrosion treatment on the surface.
3.Simple structure,fast installation.
Installation Site :
Opend FieldWind Load :
60m/sSnow Load :
2KN/m2Material :
Carbon SteelWarranty :
15 YearsShipping Port :
Xiamen Port,ChinaSystem Instruction

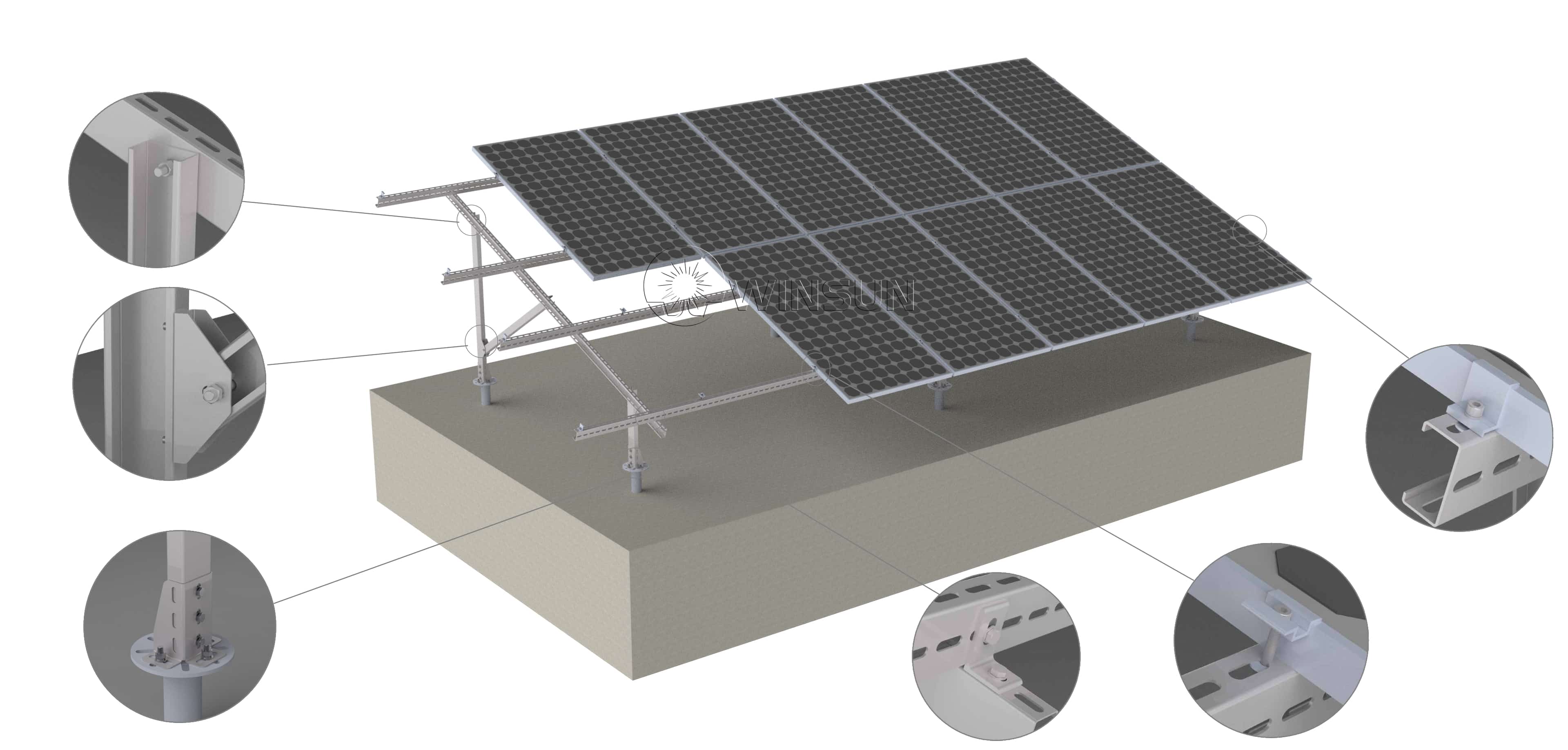

The Winsun steel ground mounting system is developed for both residential and commercial solar panel ground mounting. It is constructed from high-strength carbon steel, treated for corrosion resistance, ensuring a robust and durable structure. Pre-assembly before shipping ensures the utmost convenience for on-site installation, making it faster and easier. This system provides a cost-effective solution for ground-mounted solar panel installations.
For surface treatment, you have the option to choose between galvanization and Zn-Al-Mg coatings.
For the foundation, there are ramming post, ground screw foundation, and cement foundation to choose from.
Technical Parameter
| Installation Site | Open Field |
| Material | Carbon Steel |
| Surface | Zn-Al-Mg Coating or Hot Dipped Galvanized |
| Wind Load | 60m/s |
| Snow Load | 2KN/m2 |
| Tilt Angle | 0°~60° |
| Foundation | Ramming Posr,Ground Screw or Concrete Base |
| PV Modules | Framed or Frameless |
| Design Standard | AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015 |
| Warranty | 15 Years |
Details

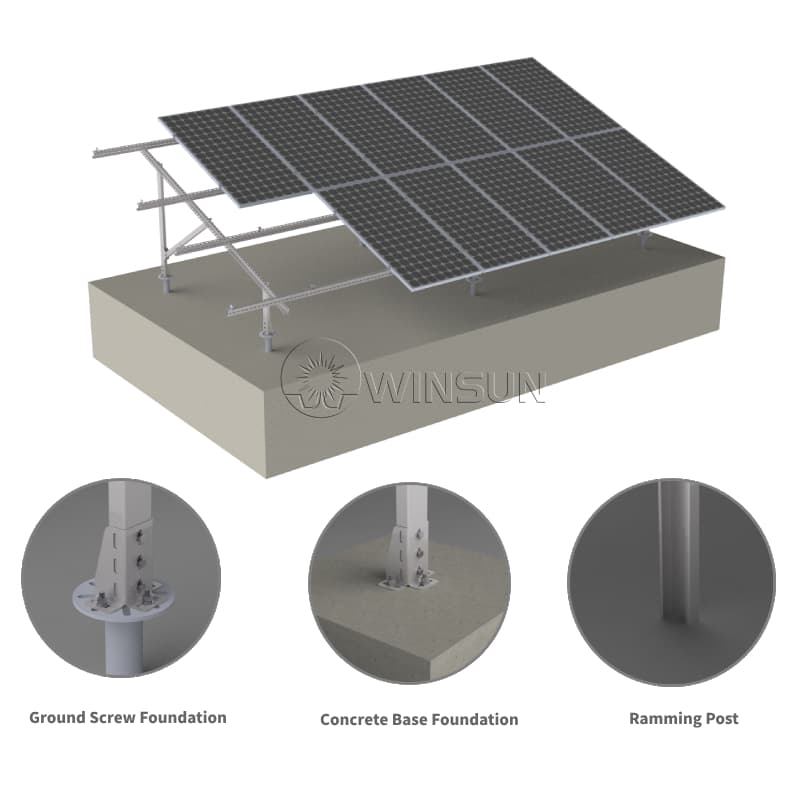

| Foundation Type | ||
 |
 |
 |
| Ramming Post | Concrete Base Foundation | Ground Screw Foundation |
1.Ground screw foundation and concrete base foundation optional. 2.Various types of brackets are available to meet different load requirement. 3.Maximum pre-assembly is carried out before shipment, making on-site installation faster and easier.
