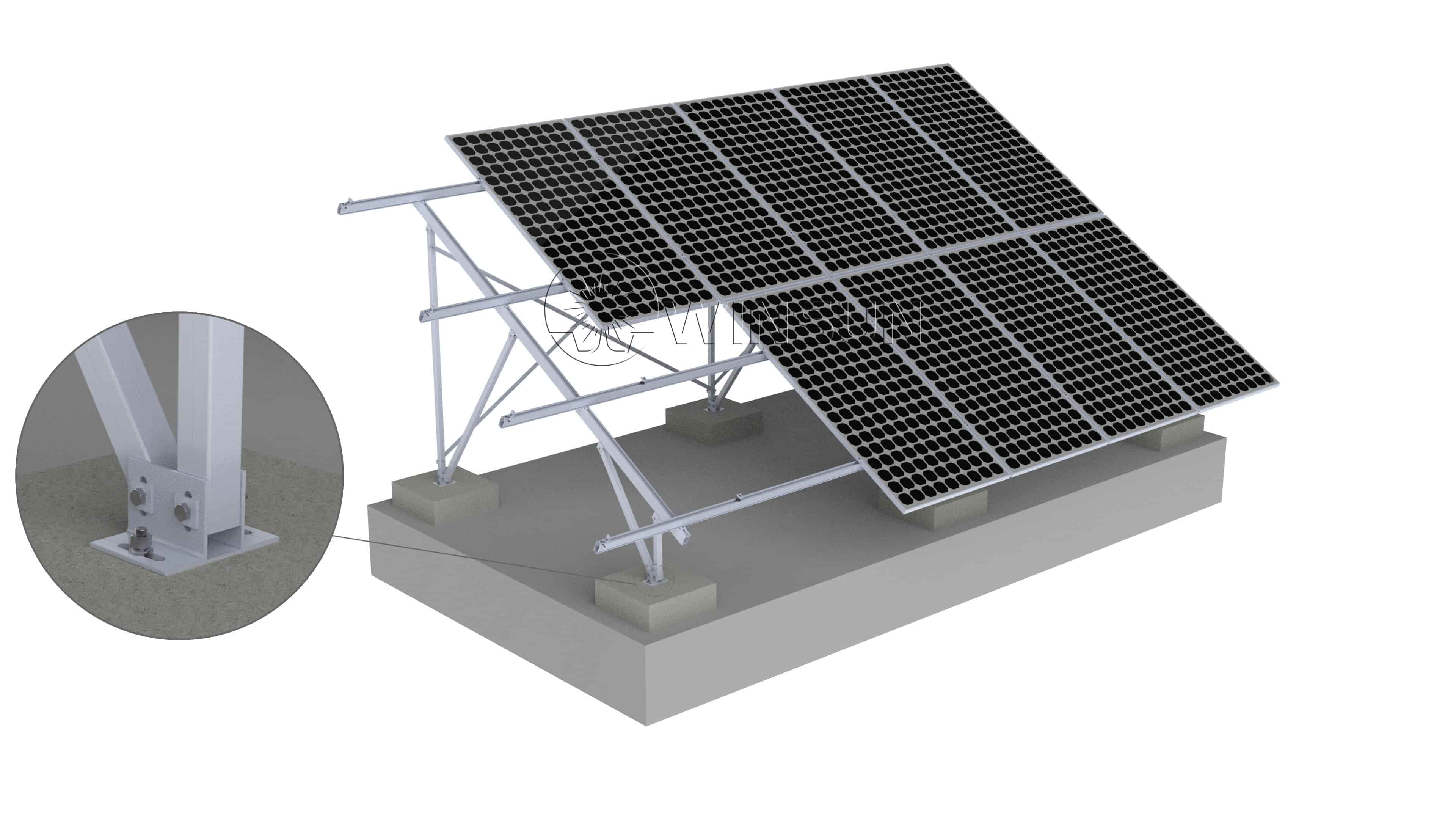

Durable Concrete Foundation Aluminum Ground Mounting System for Solar Panels
1.High-strength aluminum construction for corrosion resistance.
2.Pre-assembled components for faster installation.
3.Engineered for stability in various environmental conditions.
Installation Site :
Opend FieldWind Load :
60m/sSnow Load :
2KN/m2Material :
AL6005-T5 & SUS304Warranty :
15 YearsShipping Port :
Xiamen Port,ChinaSystem Instruction

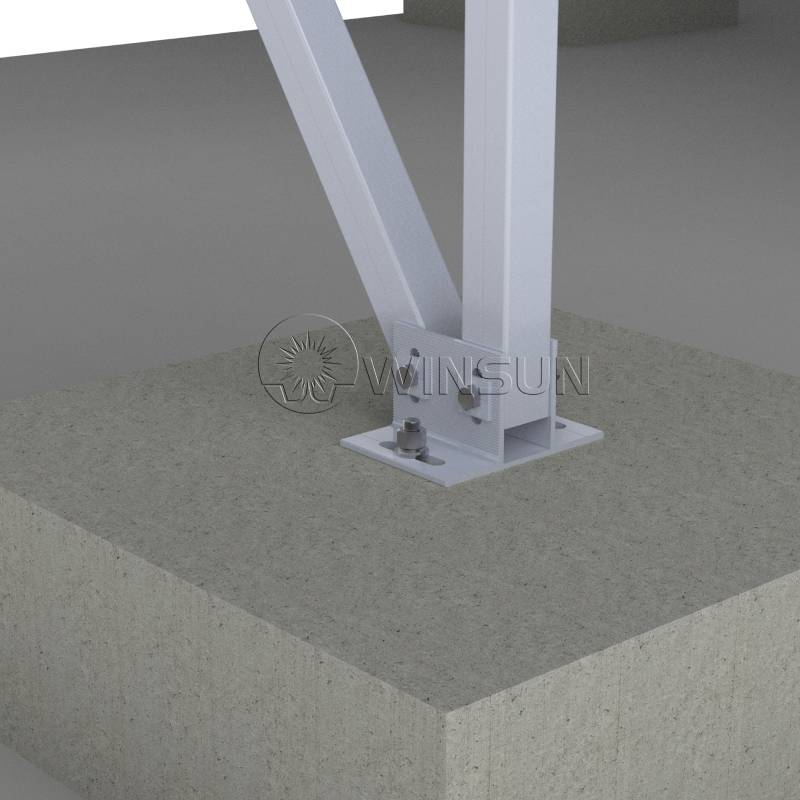

Our concrete foundation aluminum ground mounting system providing robust, durable support that ensures optimal panel positioning and energy efficiency. Designed for quick assembly and secure grounding, this system is engineered for long-term stability in diverse environments, making it a preferred choice for both commercial and residential solar projects.
For projects requiring different foundations, our screw pile aluminum ground mounting system offers another versatile solution to meet unique installation needs.
Key Features:
Explore the benefits of this cement foundation PV mounting solution for your next solar project with robust, dependable performance. For diverse installation needs, explore other solar ground mounting systems.
Technical Parameter
| Installation Site | Open Field |
| Material | Aluminum 6005-T5 & SUS304 Stainless Steel |
| Wind Load | 60m/s |
| Snow Load | 2KN/m2 |
| Tilt Angle | 0°~60° |
| Foundation | Ground Screw or Concrete Base |
| PV Modules | Framed or Frameless |
| Design Standard | AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015 |
| Warranty | 15 Years |
Details
| Pre-assembled Support Type | |||
 |
 |
 |
 |
| N-type Support | W-type Support | V-type Support | VI-type Support |
1.Ground screw foundation and concrete base foundation optional. 2.Various types of brackets are available to meet different load requirement. 3.Maximum pre-assembly is carried out before shipment, making on-site installation faster and easier.
Read More
1.Three foundations are available,ramming post,ground screw foundation,concrete base foundation. 2.The structure is made of high-strength carbon steel with anti-corrosion treatment on the surface. 3.Simple structure,fast installation.
Read More
1.Special developed for slop ground. 2.The structure is made of high-strength carbon steel with anti-corrosion treatment on the surface. 3.Highly pre-assembled before shipment.
Read More
1.High-strength aluminum construction for corrosion resistance. 2.Pre-assembled components for faster installation. 3.Engineered for stability in various environmental conditions.
Read More
