Curved Roof Solar Mounting System for Efficient Solar Panel Installation on Unique Roofs

Curved Roof Solar Mounting System for Efficient Solar Panel Installation on Unique Roofs

1.Precise Adjustment for Curved Roofs: Adjustable brackets ensure a perfect fit for uneven or curved surfaces.

2.Stable Panel Alignment: Fine-tuned adjustments keep solar panels parallel to the roof or at the optimal angle.

3.Efficient Installation: Flexible design simplifies installation on complex curved roofs.

  • Installation Site :

    Curved Roof
  • Wind Load :

    35m/s
  • Snow Load :

    2KN/m2
  • Material :

    Aluminum 6005-T5,SUS304 Stainless Steel&EPDM
  • Warranty :

    15 Years
  • Shipping Port :

    Xiamen Port,China

System Instruction



Winsun Curved Roof Solar Mounting System is engineered to solve the challenges of installing solar panels on curved and irregular roofs, ensuring precise panel alignment, maximum energy efficiency, and long-term durability. This is achieved with the use of the WS-CR-MINI mini rail, a key component designed to fit various roof profiles.

Key Features:

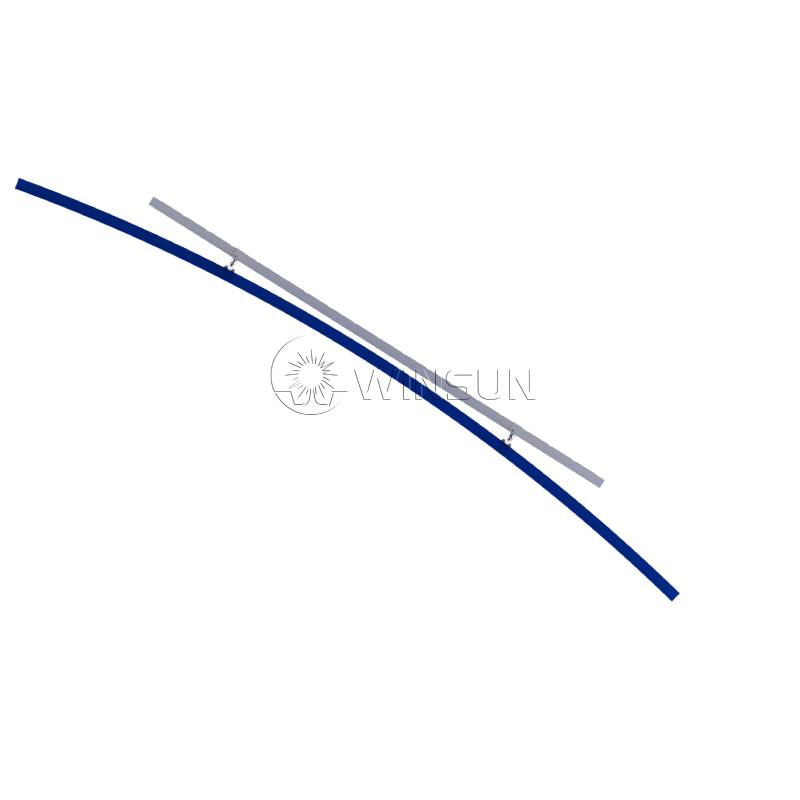

Precise Adjustment for Curved Roofs: The WS-CR-MINI mini rail allows for precise adjustments, ensuring a perfect fit for different curved roof profiles, such as domed, arched, and irregular shapes, providing secure and stable panel installation.

Stable Solar Panel Alignment: Fine-tuned adjustments keep the solar panels parallel to the roof or positioned at the optimal angle for maximum sunlight exposure, improving solar panel efficiency.

Efficient Installation: The flexible and modular design simplifies installation, reducing labor and installation time, making it a cost-effective solution for curved roof solar panel installations.

Durability and Weather Resistance: Built with high-quality, weather-resistant materials, the system is designed to withstand harsh weather conditions, ensuring long-term reliability and performance.





Technical Parameter



Installation Site Curved Roof
Material Aluminum 6005-T5,SUS304 Stainless Steel&EPDM
Wind Load 35m/s
Snow Load 2KN/m2
PV Modules Framed or Frameless
Design Standard AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015
Warranty 15 Years



Details

Curved Roof Solar Mounting System



Components

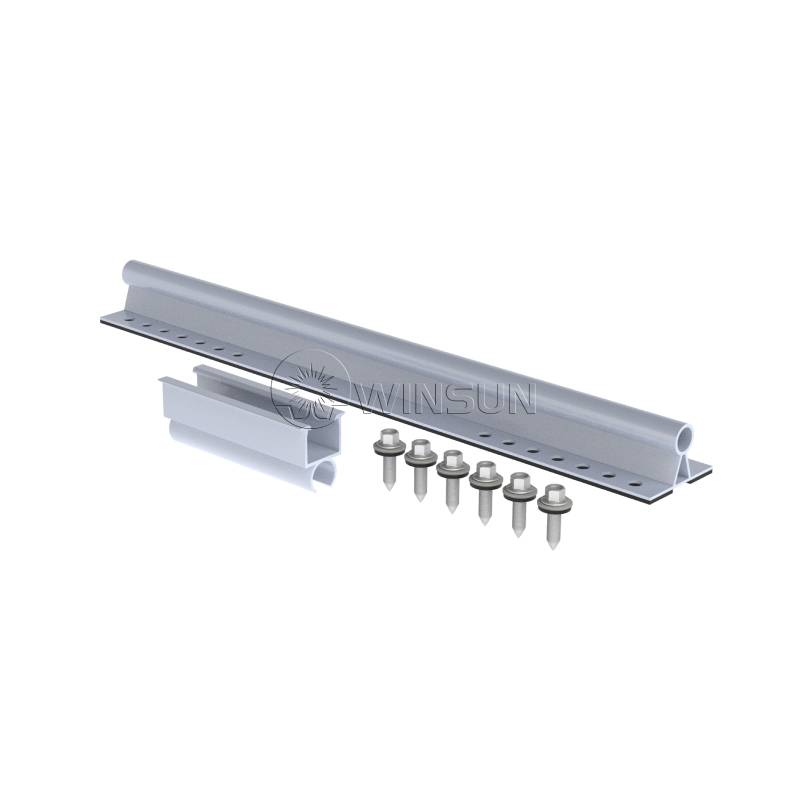

Solar Mini Rail For Curved Roof Solar Panel Mounting solar panel fastener-middle clamp end clamp for PV modules fastening

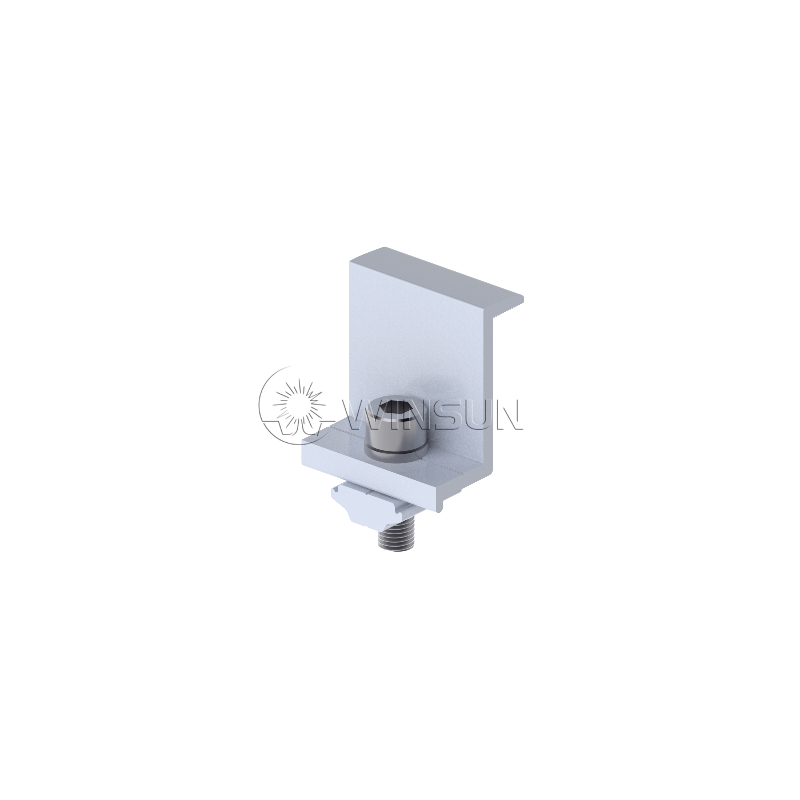

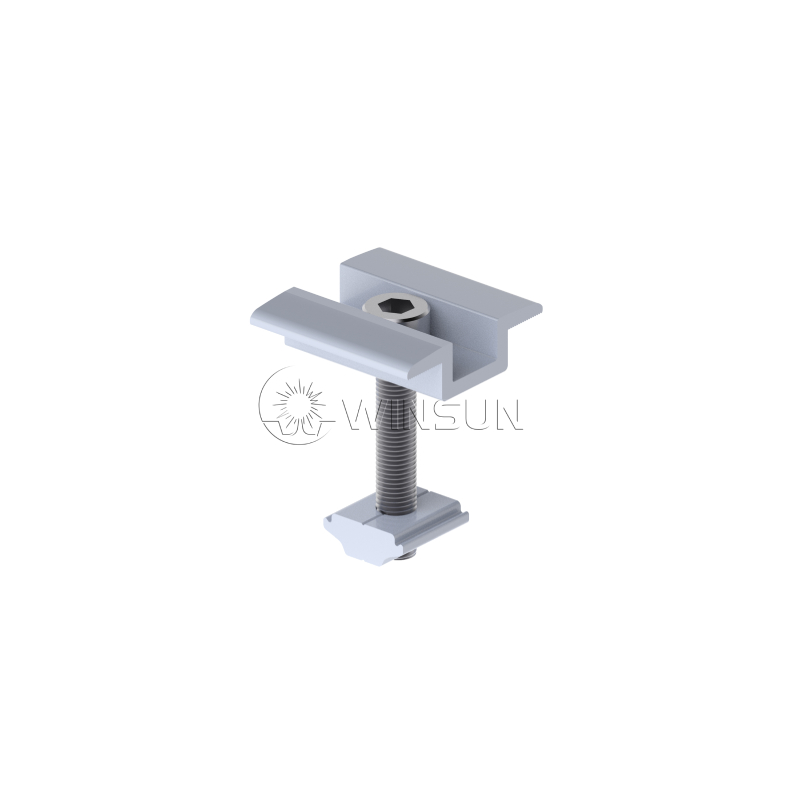

27mm Height Mini Rial Middle Clamp Kit End Clamp Kit







Get A Free Quote !
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

mini rail solar mounting system for metal roof
EU Warehouse 27mm Height Mini Rail Solar Mounting System For Corrugated Sheet Metal Roof

1.Short rail installation for cost savings.Rail length customizable. 2.Rail segments are supplied with EPDM rubber pad covered bottom side. 3.In stock in EU,fast delivery.

Read More
Trapezoidal Sheet Metal Roof Solar Mounting System
EU Warehouse Trapezoidal Sheet Metal Roof Solar Mounting Structure 60mm Height Mini Rail

1.60mm height mini rail segments are supplied with EPDM rubber pad covered bottom side. 2.Used for rapezoidal sheet metal roof, corrugated sheet metal roof and sandwich panel roof 3.EU warehouse,fast delivery!

Read More
tin roof solar mounting structure
Hanger Bolt Solar Mounting System For Tin Roof Solar Mount

1.There are multiple options for hanger bolts with various specifications. 2.Suitable for a variety of roof types, including metal roofs, tile roofs, asbestos tile roofs, and more. 3.Pre-assembled to the maximum extent before shipping.

Read More
trapezoidal sheet metal roof solar mounting barackets
U-shaped Mini Rail Solar Mounting Bracket Attaching Solar Panels To Metal Roof

1.U-shaped rails are available in two heights: 30mm and 40mm. 2.The length is 120mm, but custom lengths are also available. 3.The bottom is equipped with EPDM sealing tape.

Read More
rib clamp metal roof solar mounting system
Rib Roof Clamp PV Mounting System Non-Penetrating Solar Roof Mount

1.Non-penetrating mounting solution for sheet metal roof. 2.Simple structure,fast installation. 3.We offer a variety of clamps that are suitable for different types of roofs. Customization is also available.

Read More
railless solar mounting brackets for metal roof
Railless Solar Panel Mounting Bracket For Metal Roof

1.No rails needed. 2.No roof penetration required. 3.Easy and fast installation. Cost-effective.

Read More
asjustable tilt solar panel roof mounts non-penetrating
Adjustable Angle Tilt Solar Mounting System For Sheet Metal Roof

1.Tilted installation with adjustable angles. 2.Two installation options are available: direct fastening with screws or use with standing seam roof clamps. 3.It's suitable for both metal roofs and concrete roofs.

Read More
L-feet bracket solar mounting system
L-feet Solar Panel Mounting Bracket For Tin Roof PV Mounting

Suitable for solar panel installation on various types of metal roofs.

Read More
