Hanger Bolt Solar Mounting System For Tin Roof Solar Mount

Hanger Bolt Solar Mounting System For Tin Roof Solar Mount

1.There are multiple options for hanger bolts with various specifications.

2.Suitable for a variety of roof types, including metal roofs, tile roofs, asbestos tile roofs, and more.

3.Pre-assembled to the maximum extent before shipping.

  • Installation Site :

    Tile Roof,Metal Roof,Fibre-cement Roof, etc.
  • Wind Load :

    60m/s
  • Snow Load :

    2KN/m2
  • Material :

    Aluminum 6005-T5,SUS304 Stainless Steel&EPDM
  • Warranty :

    15 Years
  • Shipping Port :

    Xiamen Port,China

System Instruction

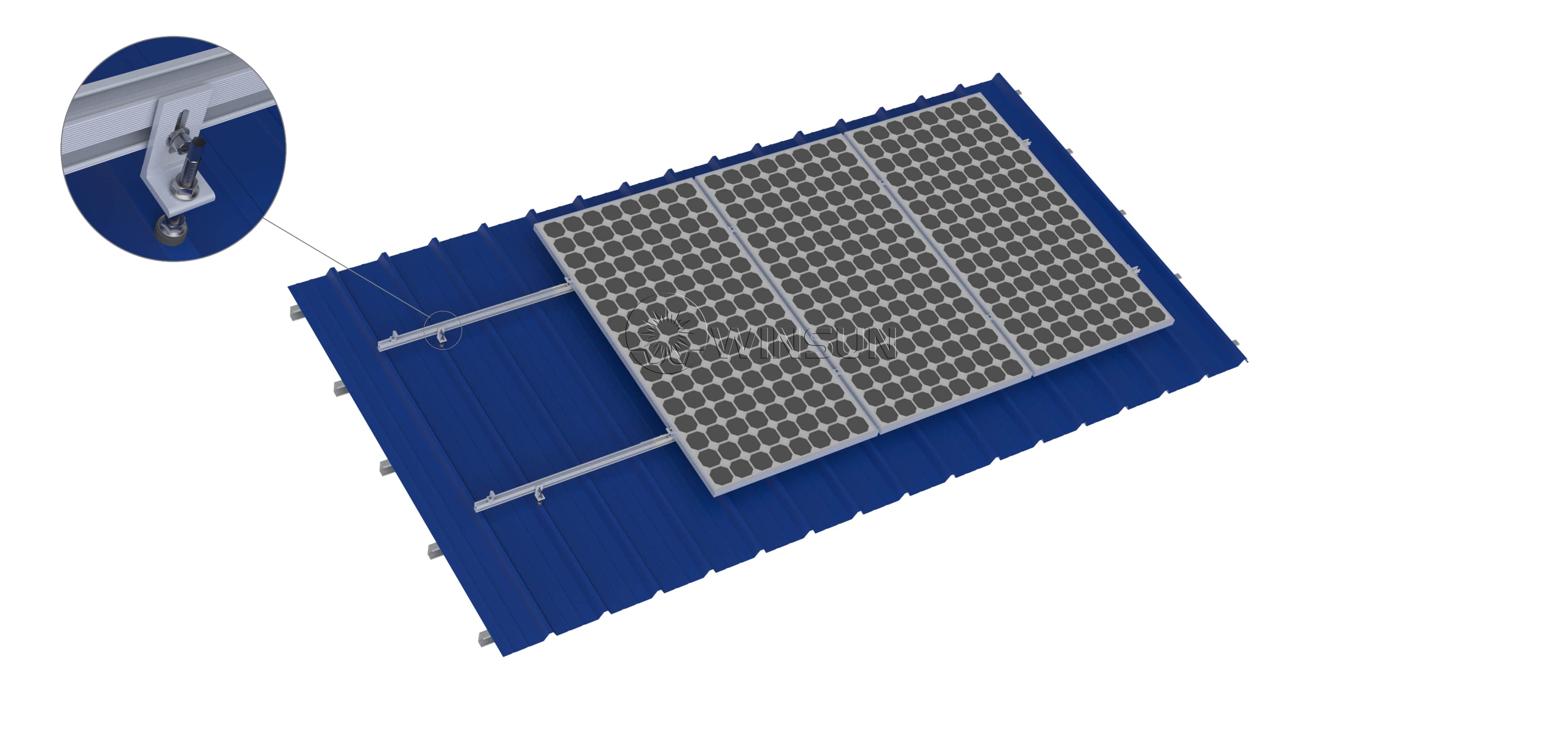

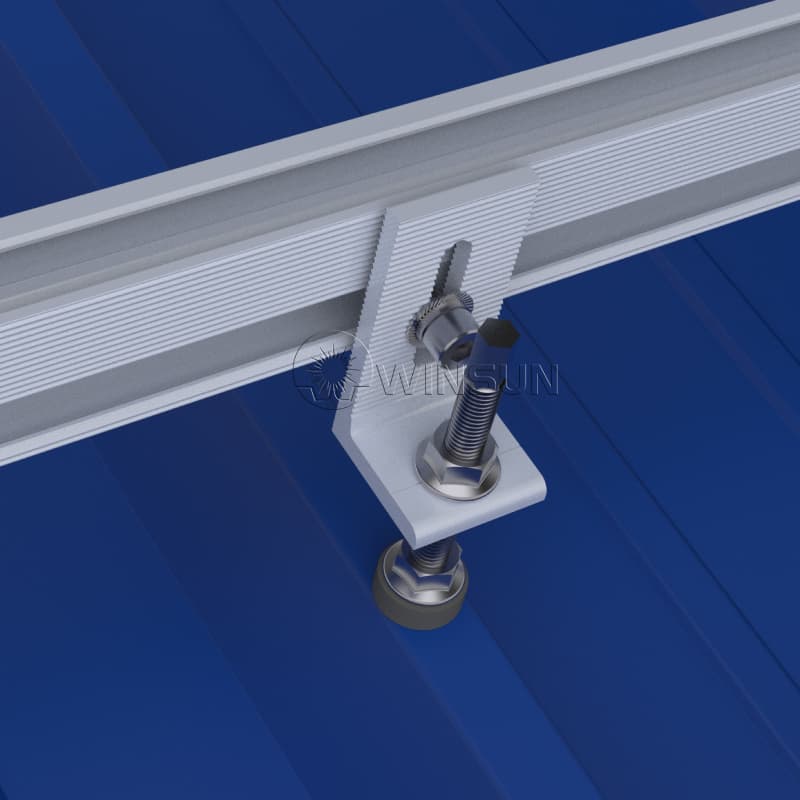

Winsun hanger bolt solar mounting system is suitable for tile roofs, fiber cement roofs, sandwich panel roofs, trapezoidal metal sheet roofs and more. The hanger bolt with L-adapter and R48 rail are used to make the installation easier, while a certain space is kept between the solar panel and the roof, which is conducive to heat dissipation.

We offer a variety of hanger bolts in different models and sizes to accommodate different beams. For instance, WS-HB-M10 hanger bolt is suitable for wooden purlings, and WS-HBS-M10 hanger bolt is designed for steel purlings.



Technical Parameter



Installation Site Tile Roof,Metal Roof,Fibre-cement Roof, etc.
Material Aluminum 6005-T5,SUS304 Stainless Steel&EPDM
Wind Load 60m/s
Snow Load 2KN/m2
Tilt Angle 0°~60°(the same angle as roof)
PV Modules Framed or Frameless
Design Standard AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015
Warranty 15 Years



Details



hanger bolt solar mounting system for tin roof



Installation Cases

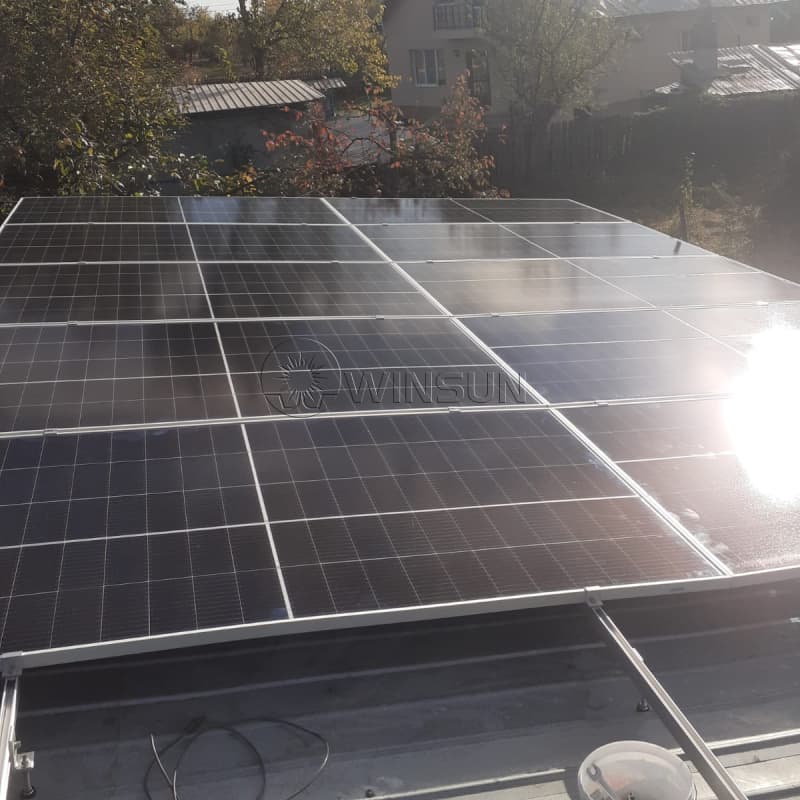

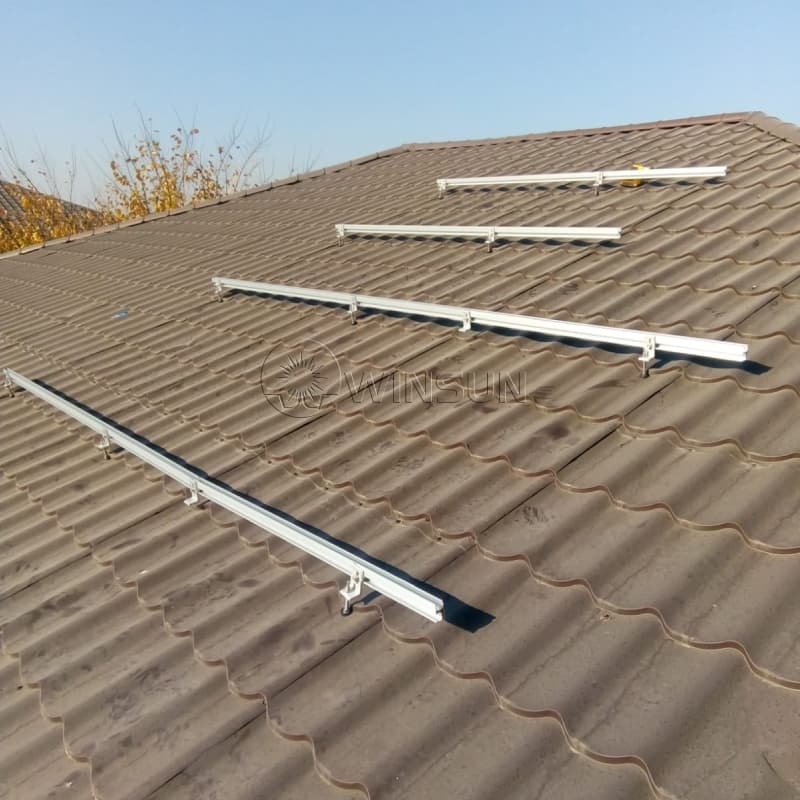

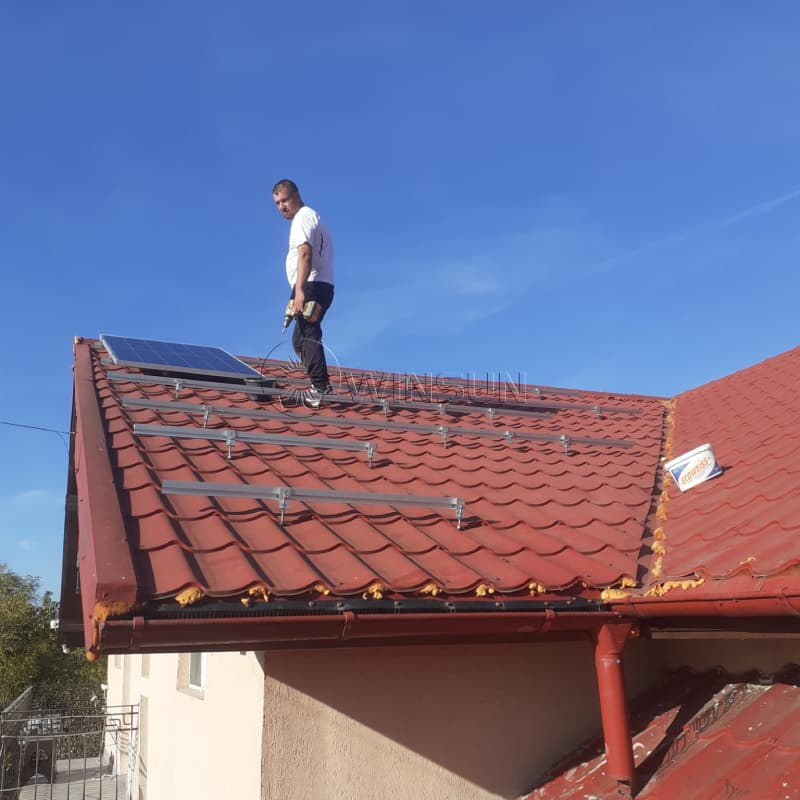

winsun hanger bolt solar mounting system installation case winsun hanger bolt solar mounting system installation case winsun hanger bolt solar mounting system installation case



Components

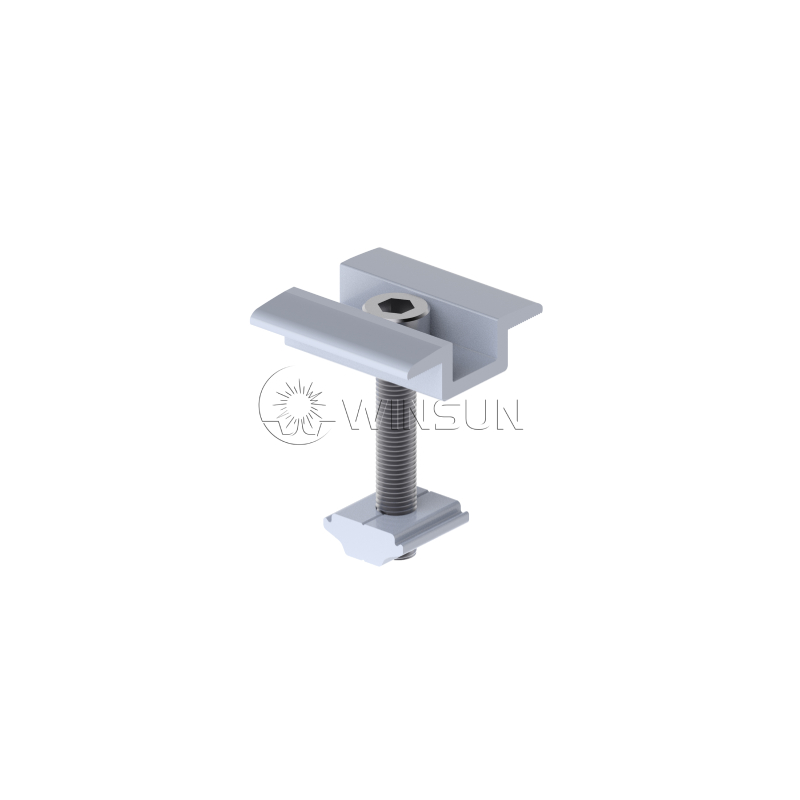

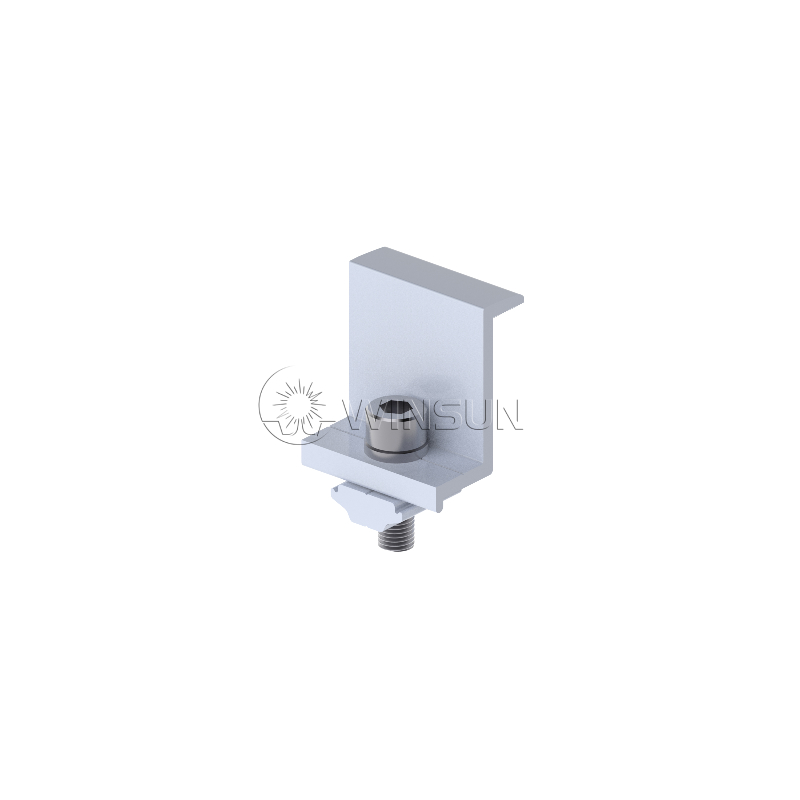

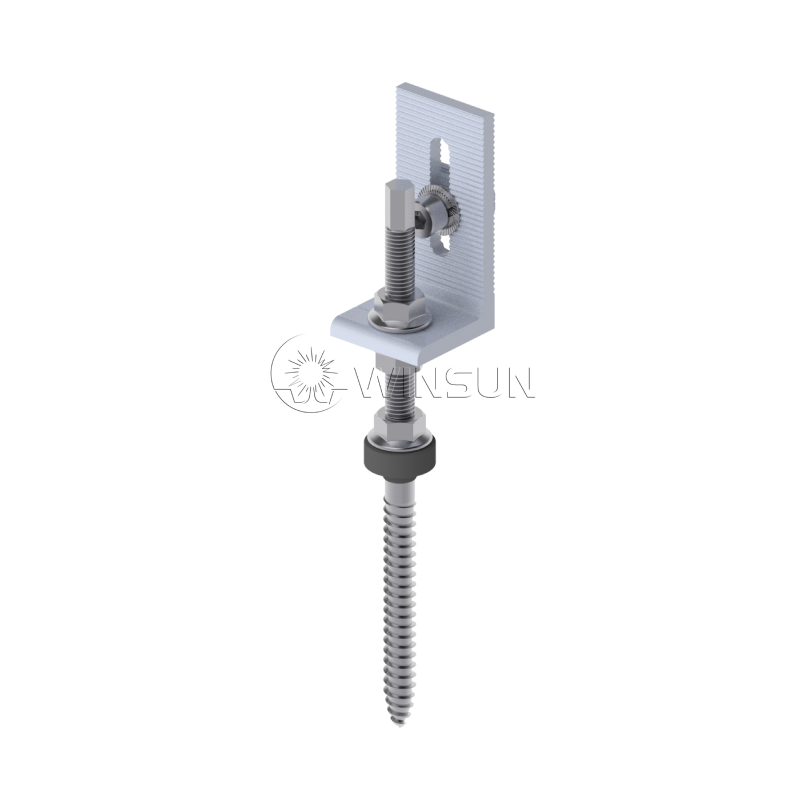

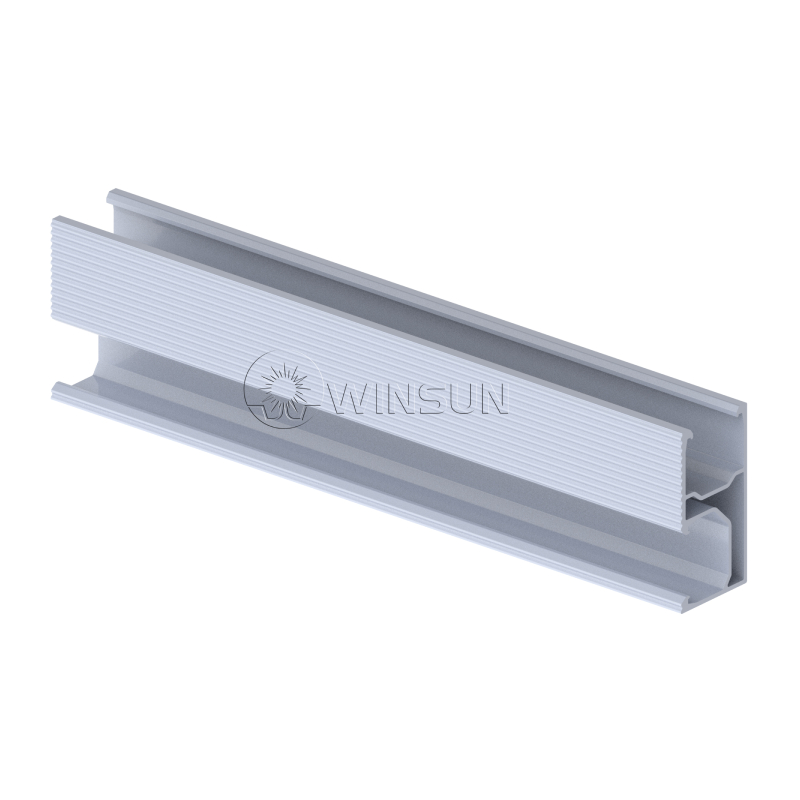

hanger bolt with L-adapter solar mounting rail PV modules fastener-middle clamp PV modules fastener-end clamp
Hanger Bolt With L-adapter R48 Rial Middle Clamp Kit End Clamp Kit







Get A Free Quote !
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
