1.Non-penetrating mounting solution for sheet metal roof.
2.Simple structure,fast installation.
3.We offer a variety of clamps that are suitable for different types of roofs. Customization is also available.
Installation Site :
Metal RoofWind Load :
60m/sSnow Load :
2KN/m2Material :
Aluminum 6005-T5,SUS304 Stainless Steel&EPDMWarranty :
15 YearsShipping Port :
Xiamen Port,ChinaSystem Instruction

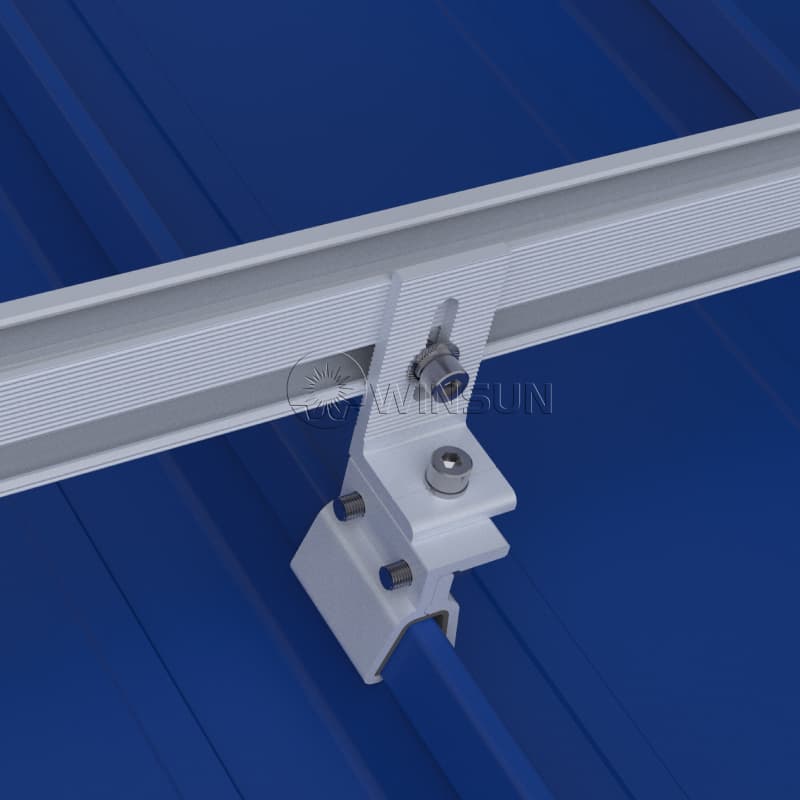

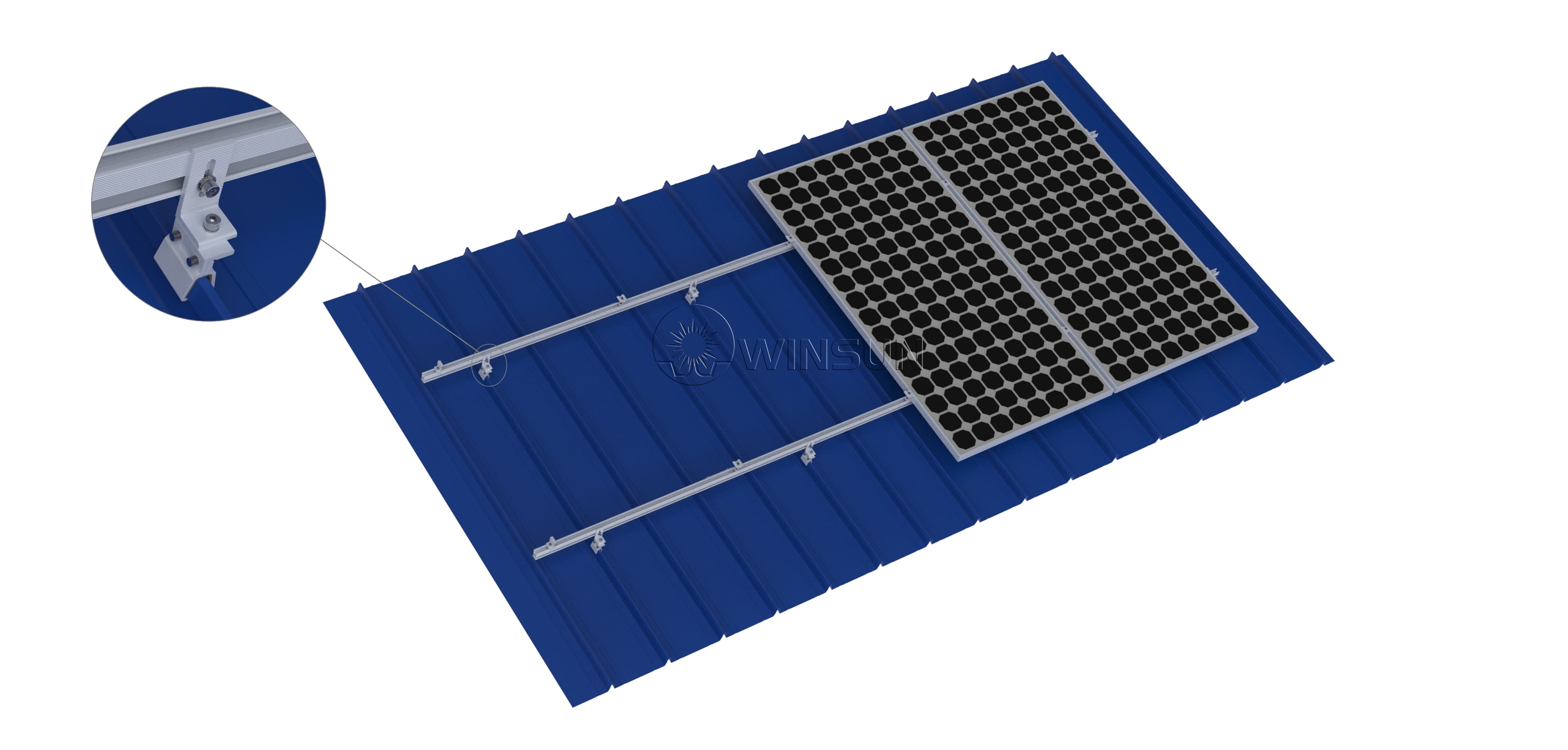

Winsun roof clamp mounting system is developed both for commercial and residential mental roof PV mounting.In this non penetrating mounting system, there is no need to break through the roof but using the WS-C06 roof clamp,which will not damange the roof.And we have a variety of different types of rib clamps suitable for various metal roof.In addition,the clamp can be customized.
Click to see more roof clamps！
Technical Parameter
| Application | Klip-Lok 406 |
| Material | Aluminum 6005-T5,SUS304 Stainless Steel&EPDM |
| Wind Load | 60m/s |
| Snow Load | 2KN/m2 |
| Tilt Angle | 0°~60°(the same angle as roof) |
| PV Modules | Framed or Frameless |
| Design Standard | AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015 |
| Warranty | 15 Years |
Details
Components
 |
 |
 |
 |

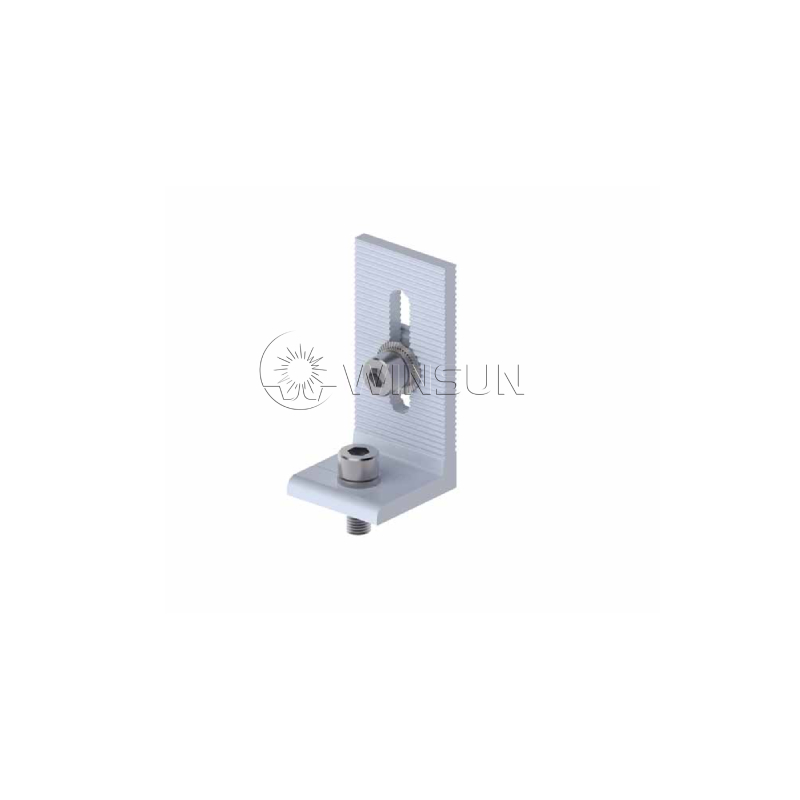

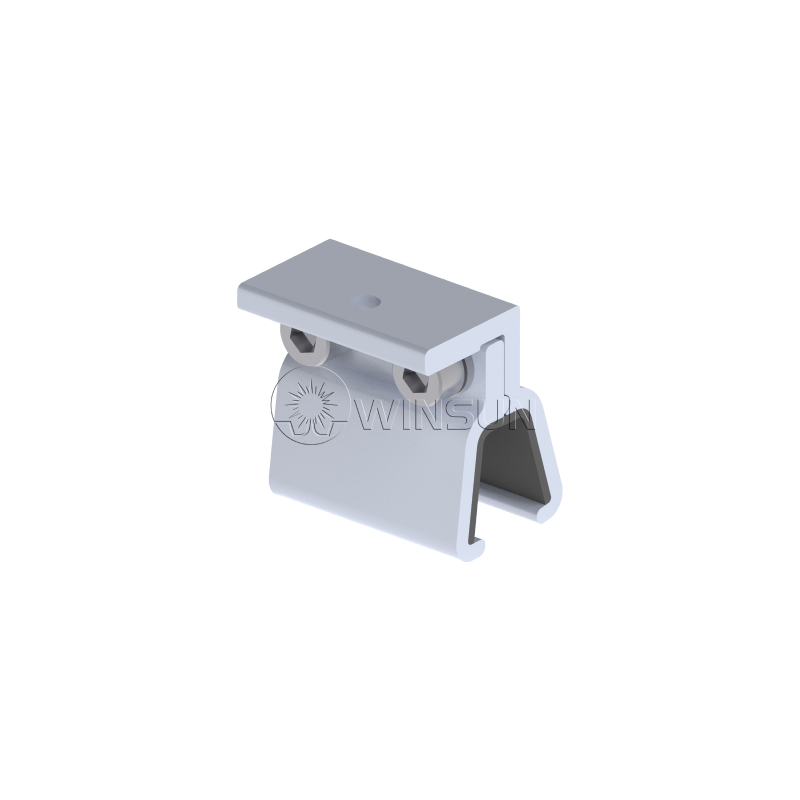

| Roof Clamp for Klip-Lok 406 | L-feet Bracket | R48 Solar Mounting Rail | Middle Clamp Kit |
 |
 |
||
| End Clamp Kit | Rail Connector |
1.Short rail installation for cost savings.Rail length customizable. 2.Rail segments are supplied with EPDM rubber pad covered bottom side. 3.In stock in EU,fast delivery.
Read More
1.60mm height mini rail segments are supplied with EPDM rubber pad covered bottom side. 2.Used for rapezoidal sheet metal roof, corrugated sheet metal roof and sandwich panel roof 3.EU warehouse,fast delivery!
Read More
1.There are multiple options for hanger bolts with various specifications. 2.Suitable for a variety of roof types, including metal roofs, tile roofs, asbestos tile roofs, and more. 3.Pre-assembled to the maximum extent before shipping.
Read More
1.U-shaped rails are available in two heights: 30mm and 40mm. 2.The length is 120mm, but custom lengths are also available. 3.The bottom is equipped with EPDM sealing tape.
Read More
1.Non-penetrating mounting solution for sheet metal roof. 2.Simple structure,fast installation. 3.We offer a variety of clamps that are suitable for different types of roofs. Customization is also available.
Read More
1.No rails needed. 2.No roof penetration required. 3.Easy and fast installation. Cost-effective.
Read More
1.Tilted installation with adjustable angles. 2.Two installation options are available: direct fastening with screws or use with standing seam roof clamps. 3.It's suitable for both metal roofs and concrete roofs.
Read More
Suitable for solar panel installation on various types of metal roofs.
Read More
