U-shaped Mini Rail Solar Mounting Bracket Attaching Solar Panels To Metal Roof

U-shaped Mini Rail Solar Mounting Bracket Attaching Solar Panels To Metal Roof

1.U-shaped rails are available in two heights: 30mm and 40mm.

2.The length is 120mm, but custom lengths are also available.

3.The bottom is equipped with EPDM sealing tape.

  • Installation Site :

    Trapezoidal Sheet Metal
  • Wind Load :

    35m/s
  • Snow Load :

    2KN/m2
  • Material :

    Aluminum 6005-T5,SUS304 Stainless Steel&EPDM
  • Warranty :

    15 Years
  • Shipping Port :

    Xiamen Port,China

System Instruction



Winsun U-shaped Mini Rail Mounting System is designed for trapezoidal sheet metal roofs, making installation easier and faster, which significantly reduces installation costs. It's a economical mounting solution for installing solar panels on metal roofs.

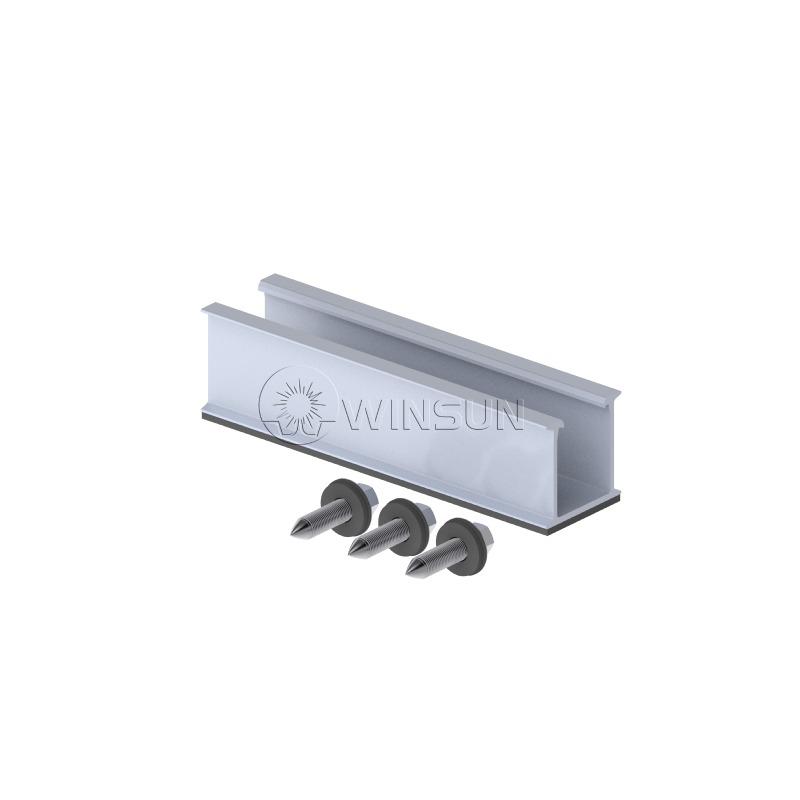

The 120mm-long U-shape mini rails prefabricated with 3 holes and EPDM rubber pad. It's available in two height options: 30mm u-shaped mini rail (WS-R30-MINI) and 40mm u-shaped mini rail (WS-R40-MINI).



Technical Parameter



Installation Site Trapezoidal Sheet Metal Roof,Sandwich Panel Roof
Material Aluminum 6005-T5,SUS304 Stainless Steel&EPDM
Wind Load 35m/s
Snow Load 2KN/m2
Tilt Angle 0°~60°(the same angle as roof)
PV Modules Framed or Frameless
Design Standard AS/NZS 1170;JIS C8955:2017;EN 1991-1-3 EN 1991-1-4;NSCP 2015
Warranty 15 Years



Details

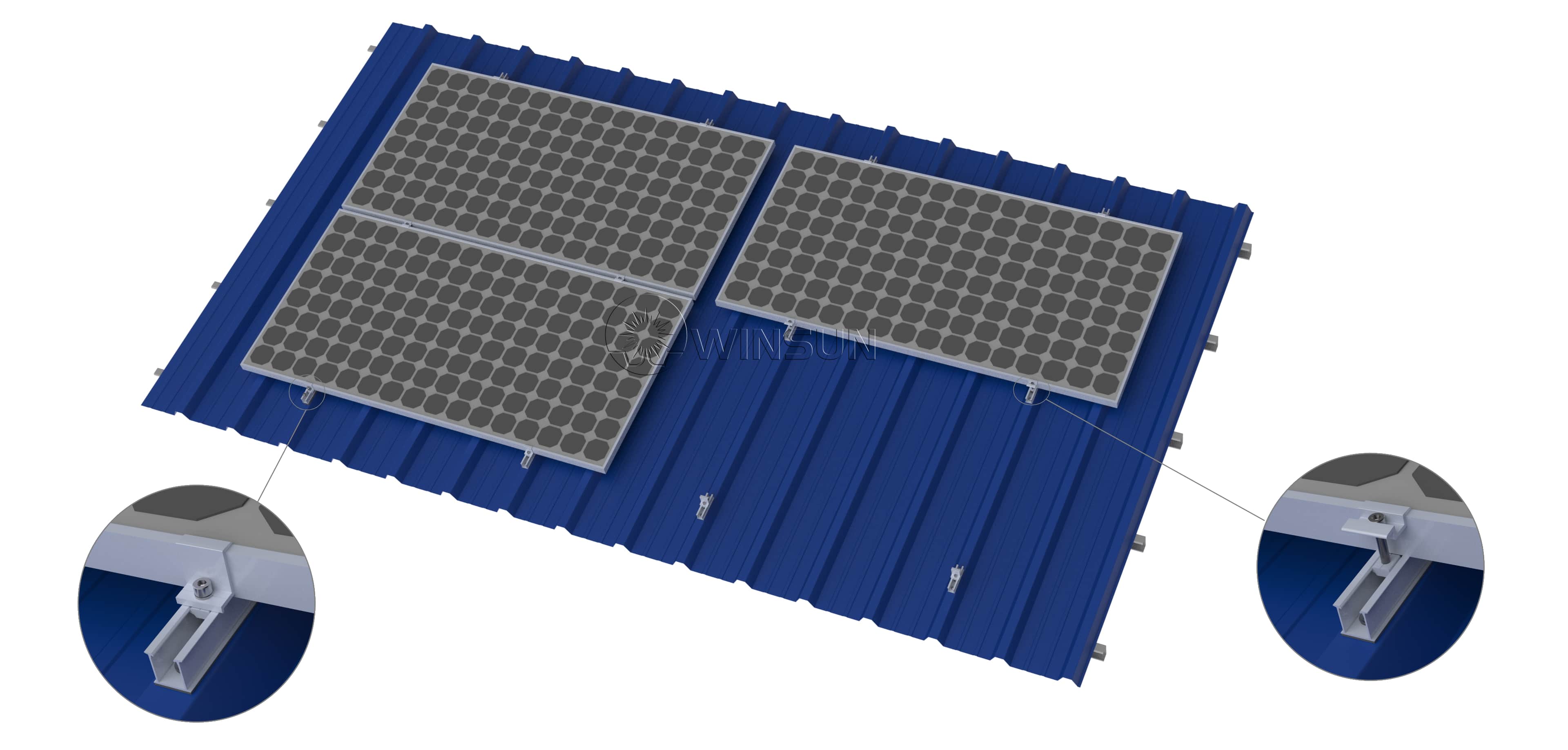

micro-rail solar mounting system for metal roof



Components



u-shaped mini rail for trapezoidal sheet metal roof solar mounting soalr panel fastener-middle clamp soalr panel fastener-end clamp

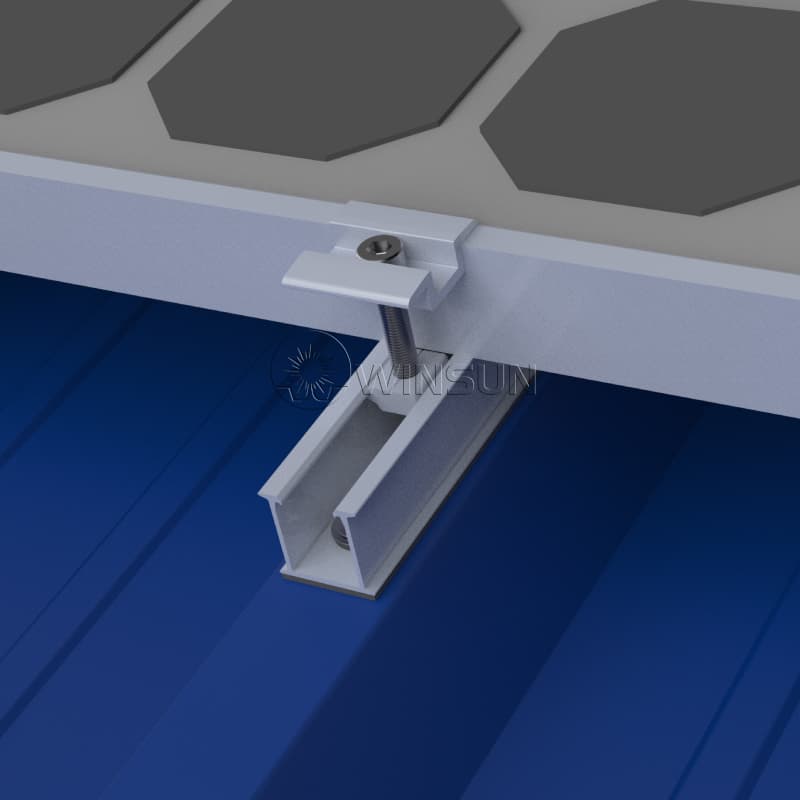

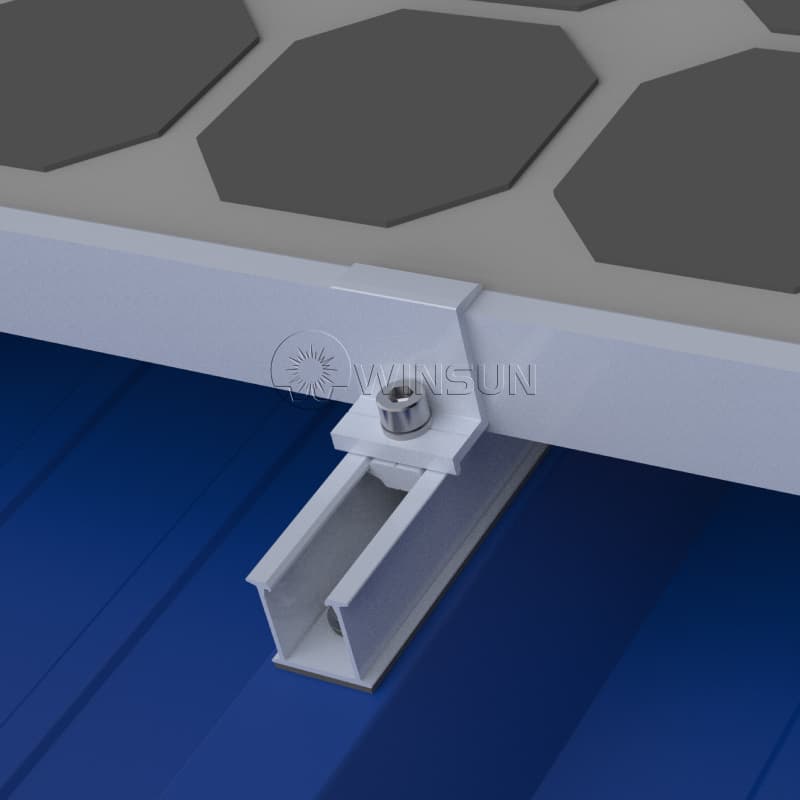

30mm Height U-shaped Mini Rial Middle Clamp Kit End Clamp Kit
